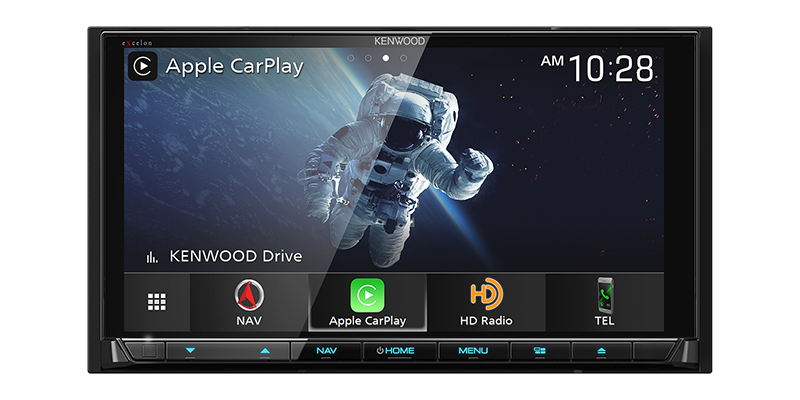

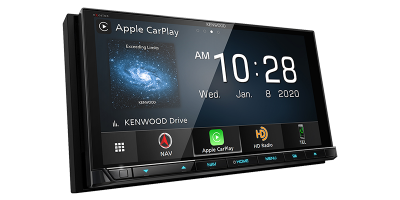

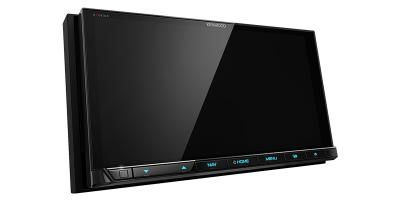

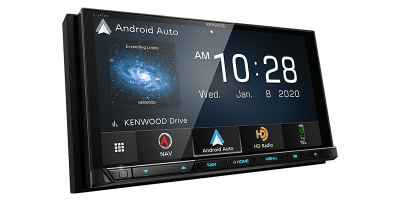

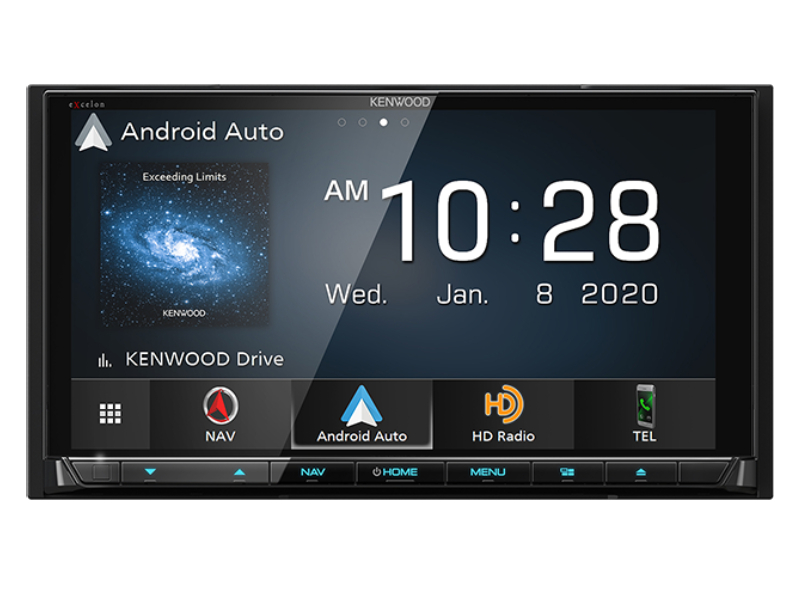

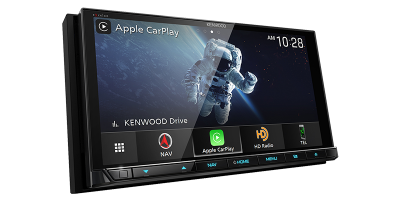

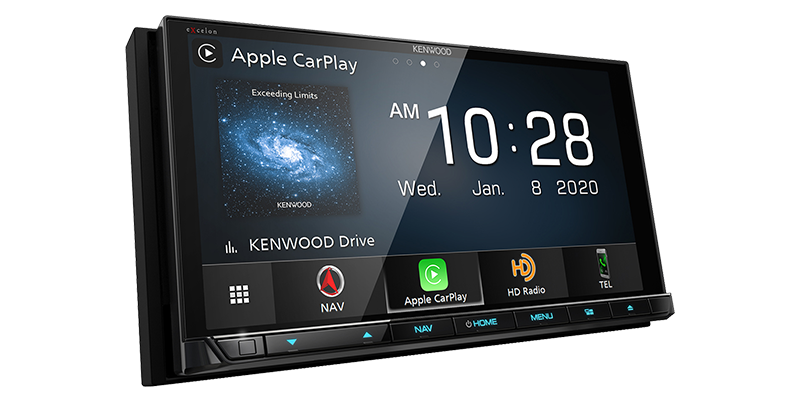

Kenwood Navigation DVD Receiver with Bluetooth And HD Radio - DNX997XR

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$1,699.00
Savings	$101.00
Our Price	$1,598.00 CAD

Or as low as $177.56/month over 9 months. Apply Now

Quote Request

Availability
Call for availability

DNX997XR
Best Deal Promise

Literature

Description
Features

6.8" High Definition Monitor with Capacitive Touch Panel

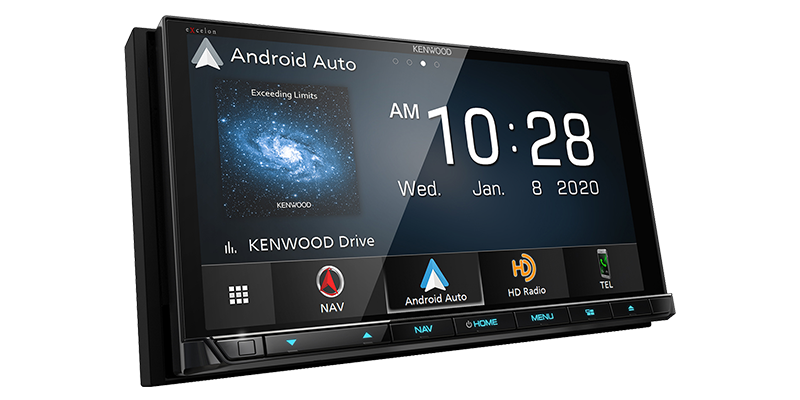

Android Auto™ & Android Auto™ Wireless

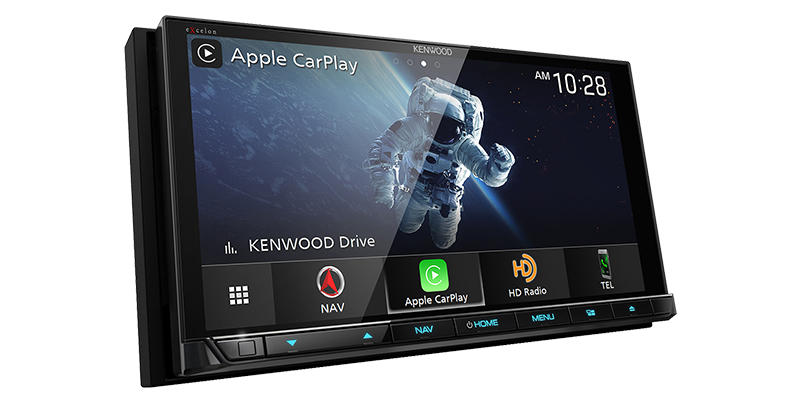

Wired and Wireless Apple CarPlay™
High-Resolution Audio Wireless
Wireless Mirroring for Android
USB Mirroring for iPhone and Android

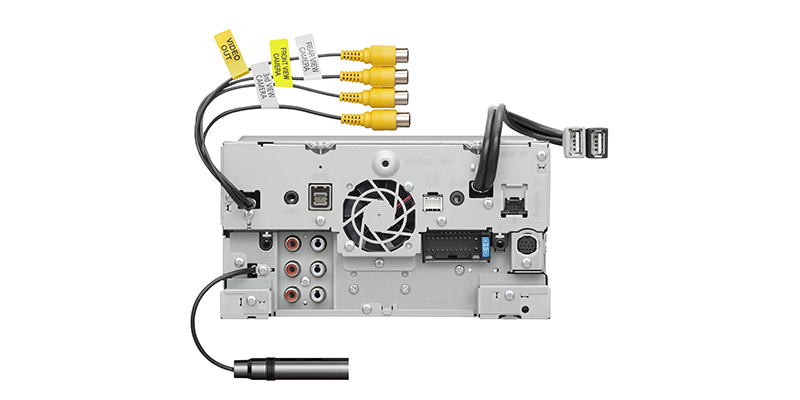

4 Camera Inputs / HD Rear Camera Ready
Built-in Bluetooth, HD Radio & WiFi
3 Preouts 5V

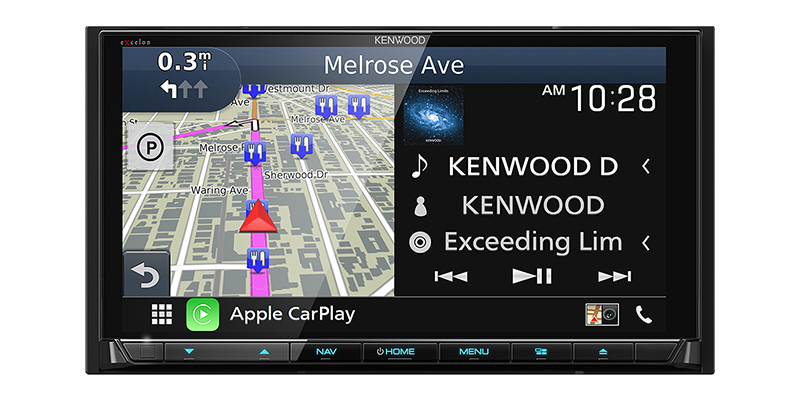

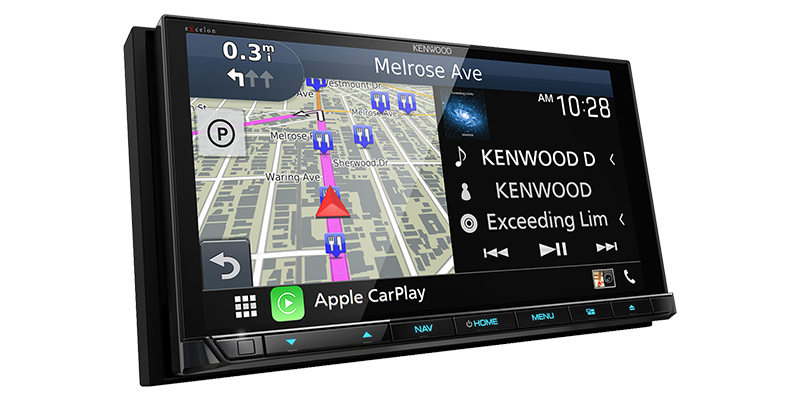

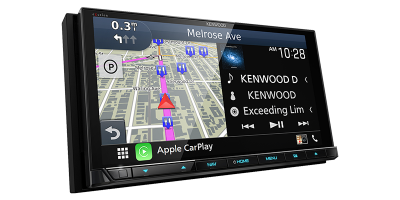

Garmin Navigation with 3D Terrain View

Advanced Navigation

Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

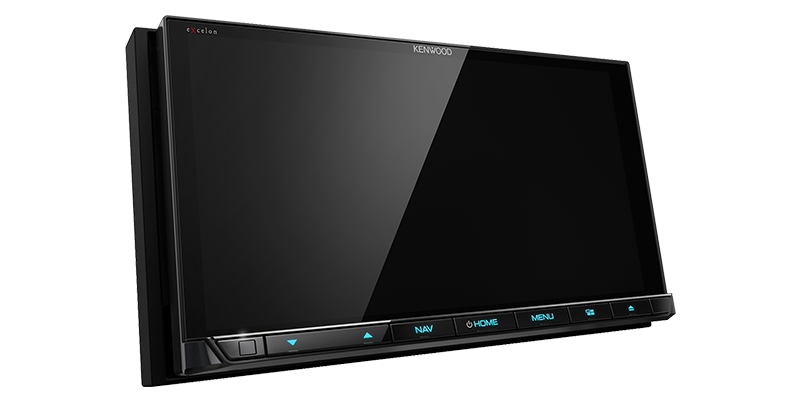

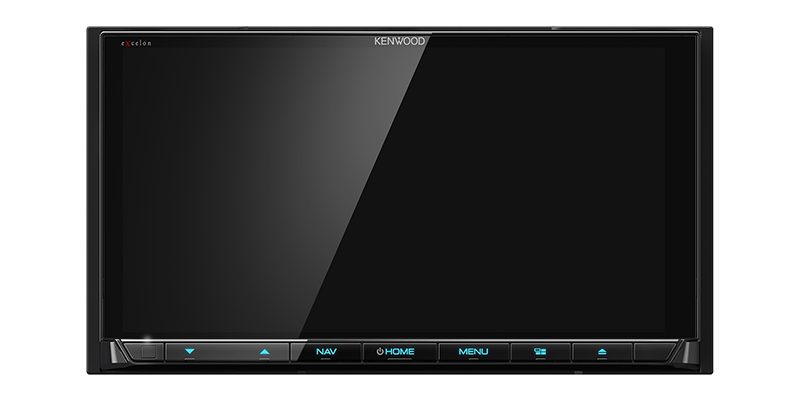

High Definition Display

HD display delivers vivid colors with high-contrast and sharpness. Featuring an all-new electrostatic capacitive touch panel and HD LCD panel, with a high luminance white LED backlight.

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

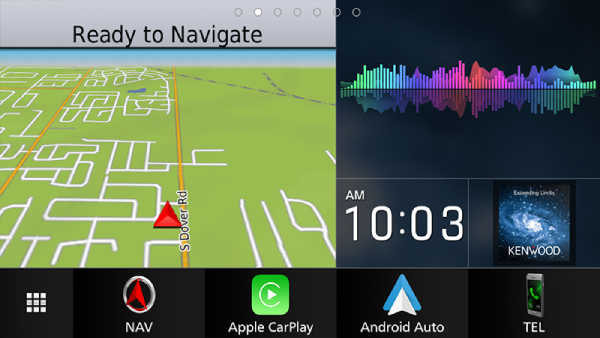

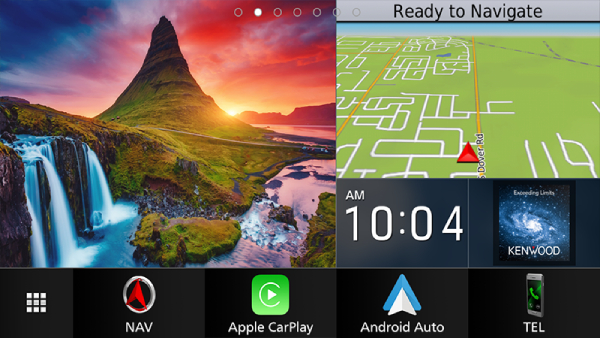

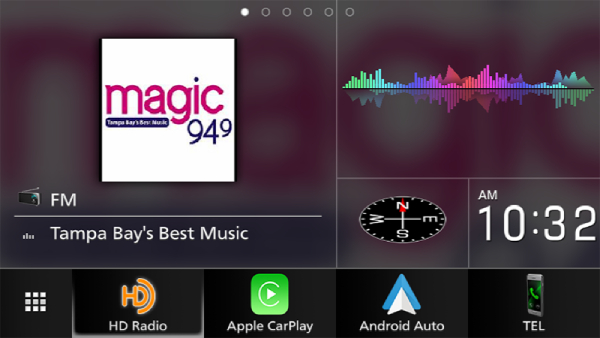

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

Equipped with Dual USB Ports

Play your music from one USB port and use the other to charge your device, or charge both at the same time.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

(Optional SiriusXM tuner required, sold separately)

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

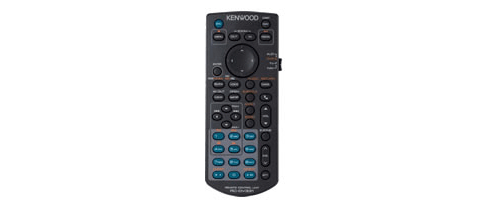

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

Monitor Section
Picture size	6.75 inches(diagonal) wide
W x H	152.1 mm x 79.5 mm, 5-63/64 x 3-1/8 inch
Display system	AAS LCD panel
Drive system	TFT active matrix system
Number of pixels	2,764,800
Number of pixels	1280H x 720V x RGB
Effective pixels	99.99%
Pixel arrangement	RGB striped arrangement
Back lighting	LED
DVD Section
D/A Converter	24 / 32Bit
Audio Decoder	Linear PCM
Audio Decoder	Dolby Audio
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter	Below Measurable Limit
Frequency response 96k Sampling	20 - 44,000 Hz
48k Sampling	20 - 22,000 Hz
44.1k Sampling	20 - 20,000 Hz
Total harmonic distortion 1kHz	0.010%
Signal to Noise ratio	90.5dB (DVD-Video 96k)
Dynamic range	89dB (DVD-Video 96k)
DISC Format	DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number	16 / 20 / 24bit
USB I/F Section
USB Standard	USB2.0 High Speed
File System	FAT 16/32, exFAT, NTFS
Maximum Power Supply Current	DC5V=1.5A
D/A Converter	24/32Bit
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
SD Section
SD Standard	SD / SDHC / SDXC
Compatible File System	FAT 16/32, exFAT, NTFS
Capacity	Maximum 2T Byte
Data Transfer Rate	Maximum 25MB/sec
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring Section
Mode	Sink
Copyright protection	HDCP2.2
Touch Control	UIBC
Wi-Fi
IEEE Standard	802.11 a/b/g/n/ac
Frequency Range	Dual Band ( 2.4GHz / 5GHz )
Channels	Auto(1-11ch), Auto(149,153,157,161ch)
Transfer rates (MAX)	11a: 54 Mbps / 11b: 11 Mbps /, 11g: 54 Mbps / 11n: 300 Mbps /, 11ac: 867 Mbps
Output Power 2.4GHz/SISO	11b:14dBm±2dB / 11g:13dBm±2dB /, 11n(20MHz):12dBm±2dB
Output Power 5GHz/SISO	11a:9dBm±2dB /, 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /, 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Output Power 5GHz/MIMO	11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /, 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section
Technology	Bluetooth Ver5.0
Frequency	2.402 – 2.480 GHz
RF Output Power (E.I.R.P.)	+4dBm (MAX), Power Class 2
Maximum Communication range	Line of sight approx.10m(32.8ft)
Audio Codec	SBC / AAC / LDAC
Multi Profile Support	Multi Profile
Profile	HFP (V1.7) (Hands Free Profile)
Profile	SPP (Serial Port Profile)
Profile	A2DP (Advanced Audio Distribution Profile)
Profile	AVRCP (V1.6) (Audio/Video Remote Control Profile)
Profile	-
Profile	PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer - BAND	13Band
Graphics equalizer - frequency (Hz) (BAND1-13)	62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Graphics equalizer - Gain	-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over - HIGH PASS FILTER frequency	Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
2Way X'Over - SLOPE	-6/-12/-18/-24[dB/Oct.]
2Way X'Over - LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
2Way X'Over - SLOPE	-6/-12/-18/-24[dB/Oct.]
3Way X'Over - HIGH PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
3Way X'Over - SLOPE	-12/-18/-24[dB/Oct.]
3Way X'Over - Band PASS FILTER frequency	Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz], 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
3Way X'Over - SLOPE	-12/-18/-24[dB/Oct.]
3Way X'Over - LOW PASS FILTER	frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
3Way X'Over - SLOPE	-12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay	0 - 20.01ft (0.03or0.04ft Step)
Gain	-8 to 0dB
Subwoofer Level	-50 to +10dB
Digital FM
Frequency Range	87.9MHz - 107.9MHz
(Frequency step)	(200kHz)
Frequency Response	20Hz - 20kHz
(±3.0 dB)	20Hz - 20kHz
S/N	80dB (STEREO)
Digital AM
Frequency Range	530kHz - 1700kHz
(Frequency step)	(10kHz)
Frequency Response	40Hz - 15kHz
(±3.0 dB)	40Hz - 15kHz
S/N	80dB (STEREO)
FM
Frequency Range	87.9MHz - 107.9MHz
(Frequency step)	(200kHz)
Usable sensitivity	9.3dBf
S/N30dB	0.8μV/75Ω
Quieting sensitivity	10.2dBf
DIN S/N 46dB	1.13μV / 75Ohms
Frequency response	30Hz - 15kHz
(±3.0 dB)	30Hz - 15kHz
S/N (dB)	65dB (MONO)
Selectivity	Over 80dB (±400kHz)
Stereo separation	45dB (1kHz)
AM
Frequency Range	530kHz - 1700kHz
(Frequency step)	(10kHz)
Usable sensitivity	28dBμ
Video
Color system of external video input	NTSC/PAL
External video input level (RCA jacks)	-
External video input level (Mini jacks)	1 Vp-p / 75 Ohms
External audio max input level (RCA jacks)	-
External audio max input level (Mini jacks)	2 V / 25 kOhms
Video Input level (RCA jacks)	1 Vp-p / 75 Ohms
Video Output level (RCA jacks)	1 Vp-p / 75 Ohms
Audio Output level (RCA jacks)	-
Audio Output level (Mini jacks)	0.9 V / 10 kOhms
Analog RGB input	-
Audio
Maximum Power Output (Front&Rear)	50Wx4
Typical Power Output (Front&Rear)	Full Bandwidth Power
Typical Power Output (Front&Rear)	(at less than 1%THD)
Typical Power Output (Front&Rear)	22Wx4
Output frequency band	20 - 88,000Hz
Preout level (V)	5V / 10kOhms
Preout impedance (Ω)	=< 300 Ohms
Speaker Impedance (Ω)	4-8 Ohms
Navigation Section
Receiver	High-sensitivity GNSS receiver
Receiving frequency	GPS：1575.42MHz GLONASS：1598．0625～1605.375MHz (C/A code )
Acquisition Times	Cold: 26 seconds(typ), All satellites at -130dBm Without aiding
Update Rate	1/second, continuous
Accuracy	Position: < 2.0meters,CEP, at -130dBm
Accuracy	Velocity: 0.05meter/sec
Positioning Method	GPS/GLONASS
Antenna	External GNSS Antenna
Installation Dimensions WxHxD	178mm x 100mm x 160mm, 7 x 3-15/16 x 6-5/16 inch
(with Sleeve)	182mm x 112mm x 163mm, 7-3/16 x 4-7/16 x 6-7/16 inch
Weight Main unit	2.5 kg, 5.5 lb, (Excluding trim plate and sleeve)
