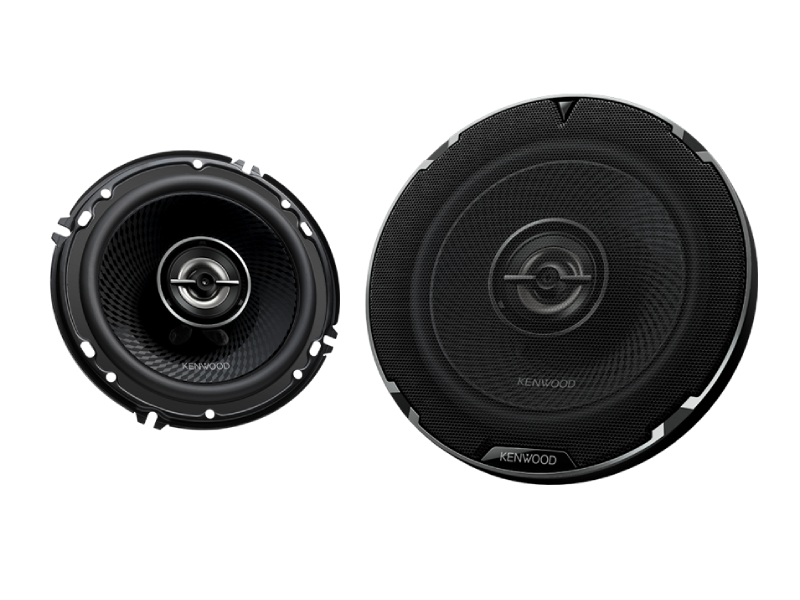

Kenwood 6-1/2" Round 2-way Speakers - KFC-1698RS
Price | $179.00 |
Savings | $51.00 |
Our Price |
$128.00 CAD |

- Peak Power 350W
- RMS 100W
- Frequency Response 76Hz -18kHz
- Diamond Array Pattern Woofer Cone
- Acoustic Sound Harmonizer
- Sound Field Enhancer

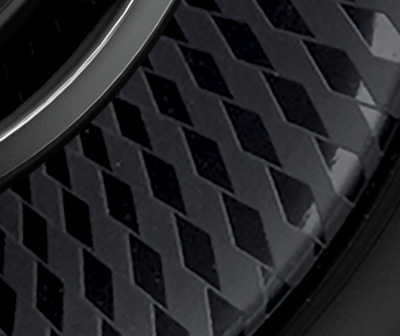

Diamond Array Pattern
Enhances sound and reduces distortion.

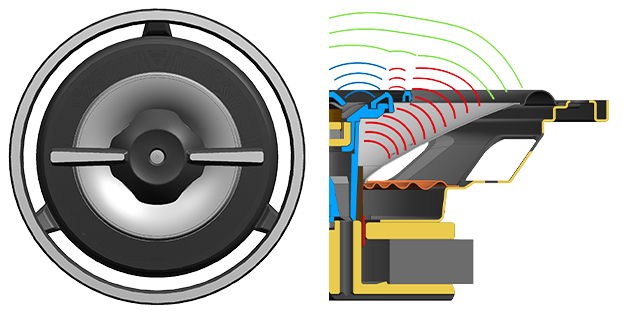

Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

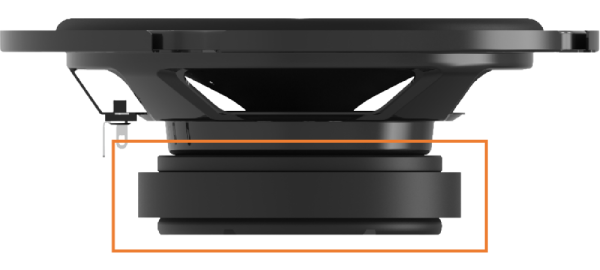

Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

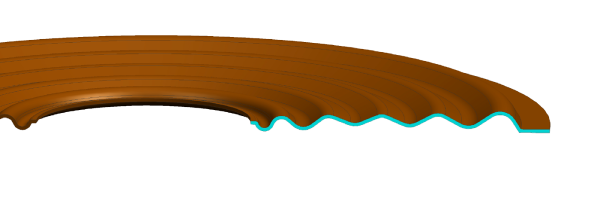

Optimized Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
Electrical | |
---|---|
IMPEDANCE | 4 |
PEAK INPUT POWER | 350W |
CTA Spec (CTA-2031 Compliant) | |
RMS POWER | 100W |
SENSITIVITY | 88dB/ W at 1 m |
FREQUENCY RESPONSE | 76-18000Hz |
Woofer | |
PP Cone | Black Colorw/ Diamond ArrayPattern |
KENWOOD LOGO | Pad Printing |
160mm | 6-1/2inch |
Surround | Rubber |
Basket | Steel |
Steel | Black |
Ferrite | 85xt12 |
Tweeter | |
Diaphragm | Balanced Dome |
Size | 30mm |
Magnet | Neodynium |
DIMENSION (mm/inch) | |
170 | 6-11/16 |
170 | 6-11/16 |
70.1 | 2-3/4 |
157.7 | 6-3/16 |
157.7 | 6-3/16 |
57 | 2-1/4 |
123.6 | 4-7/8 |
9 | 3/8 |
48 | 1-7/8 |
Accessory | |
Grille Holder/Punching Net | 2pcs |
4x25 | 8pcs |
4 | 8pcs |
0.5m | 2pcs |
Adhesive Tape | 1set |
Warranty Card | 1pc |
