Klipsch Designer Series 6.5″ In-Wall Speaker DS160W
Authorized Dealer
Price Match Guarantee
DS-160W

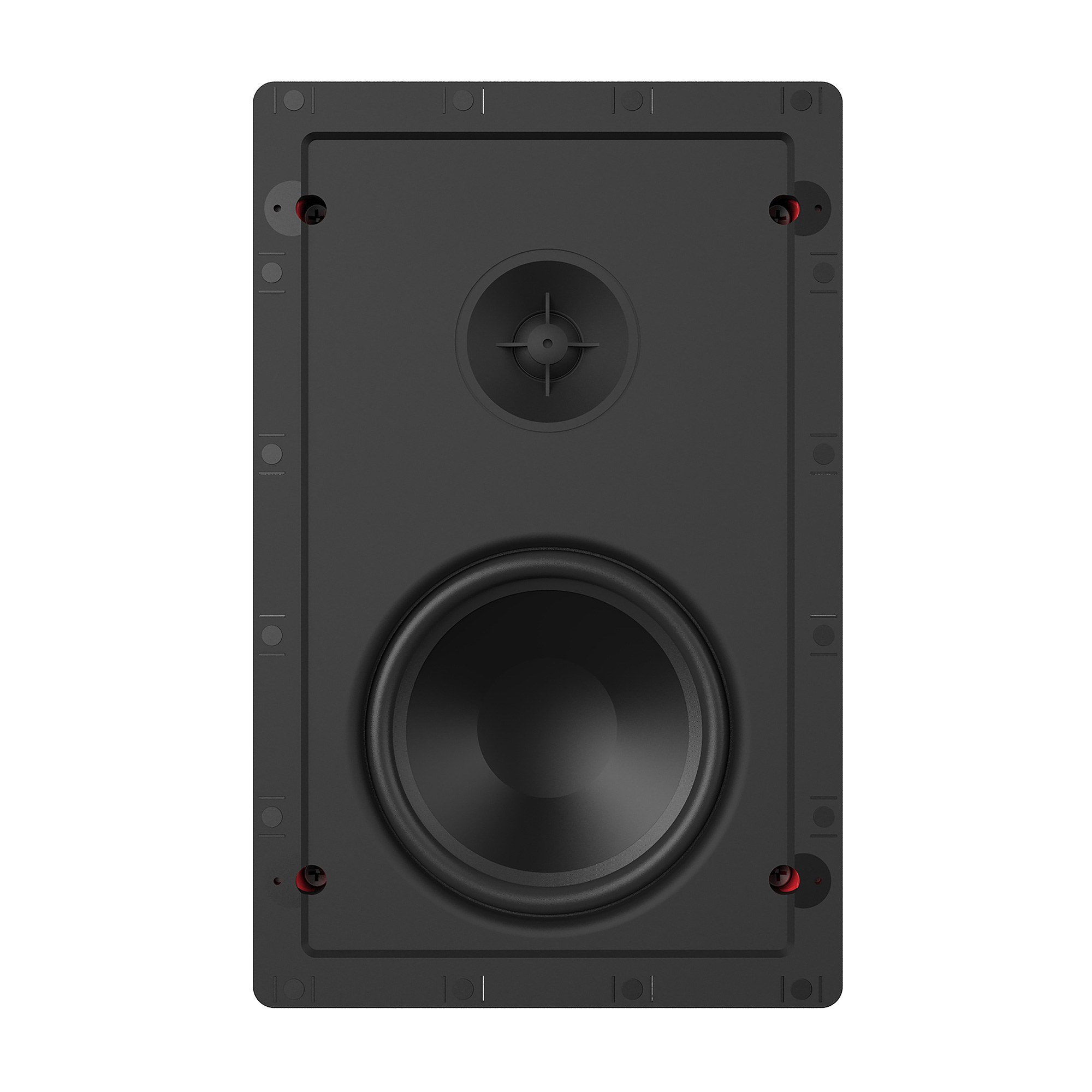

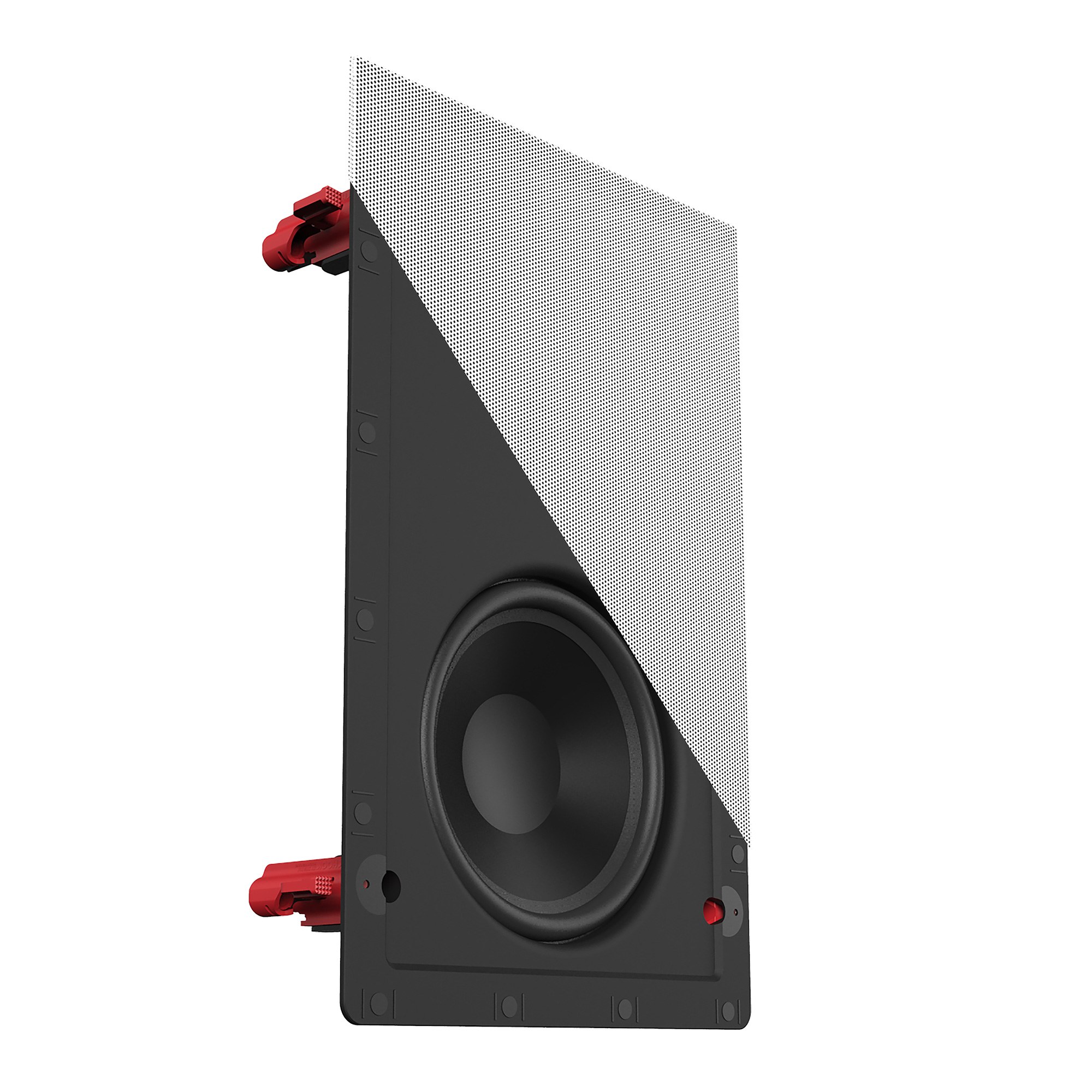

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160W features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.
Features:
- 6.5” Polypropylene woofer
- 1” Silk Dome tweeter
- Patent-Pending SkyHook™ Tool-Free Installation System
- Bezel-Free Magnetic Grille

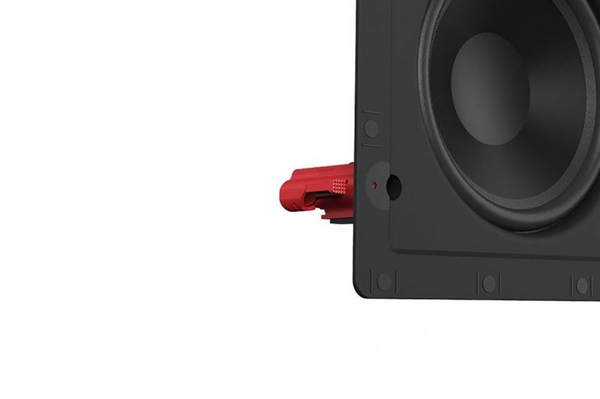

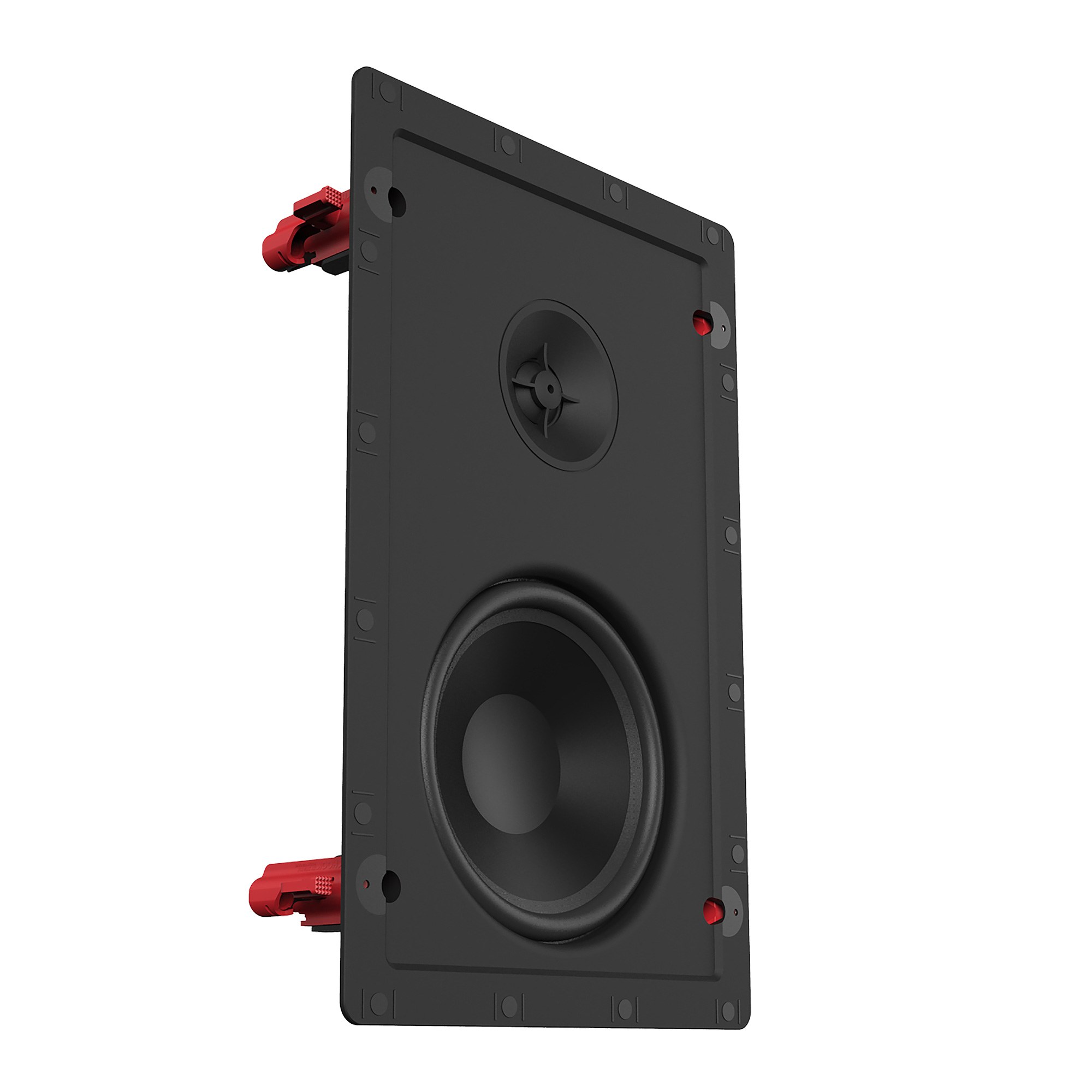

SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

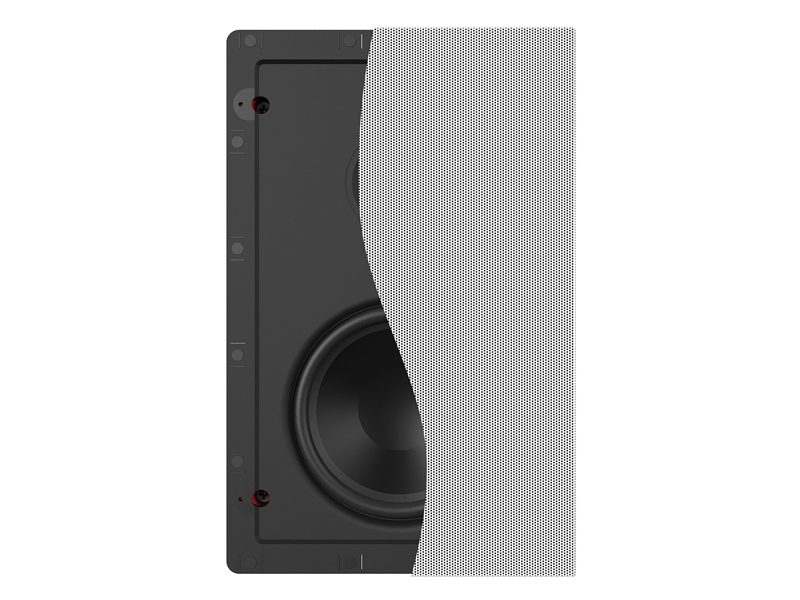

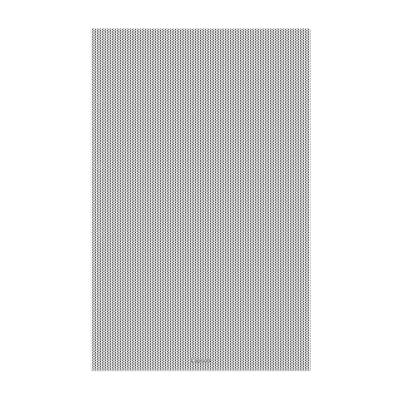

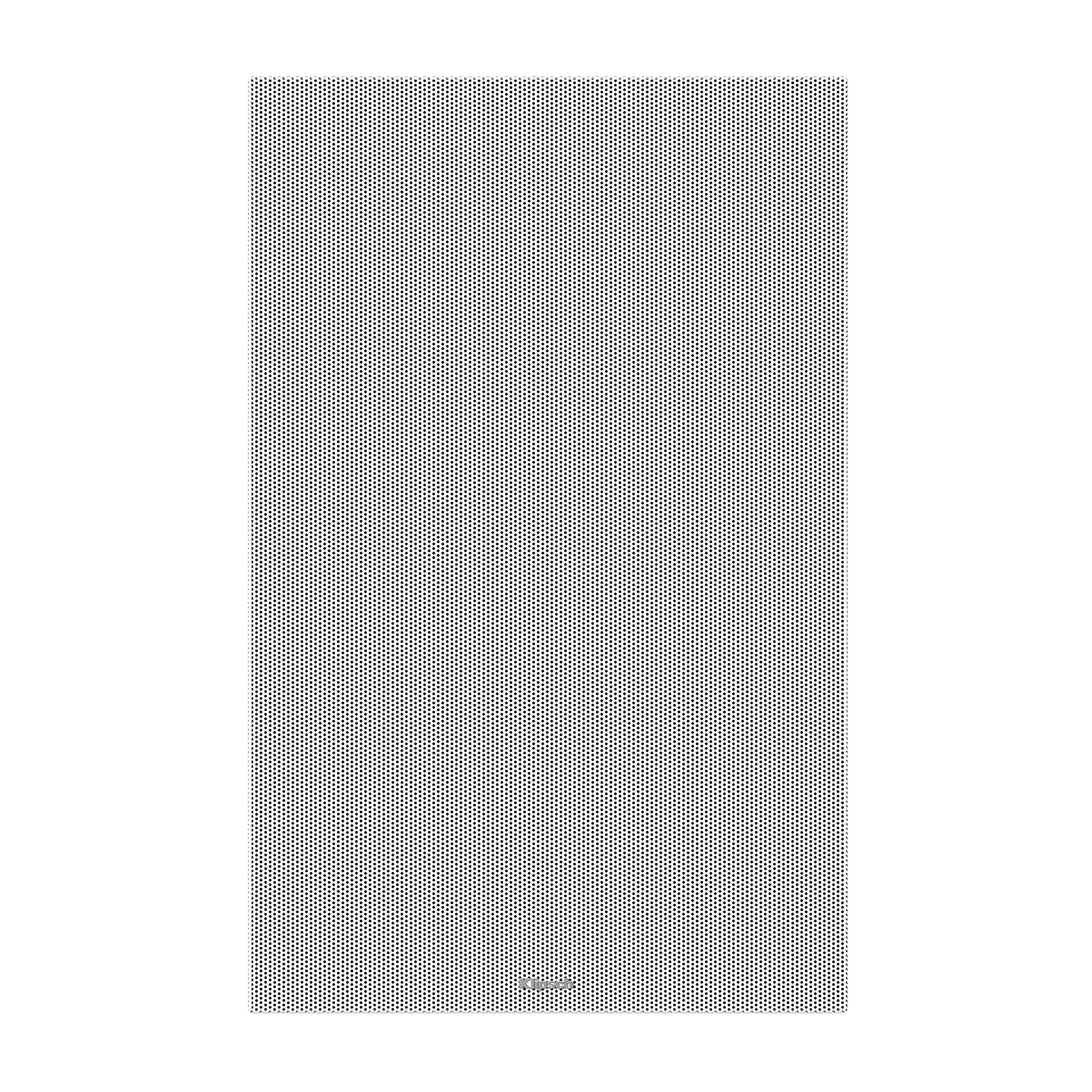

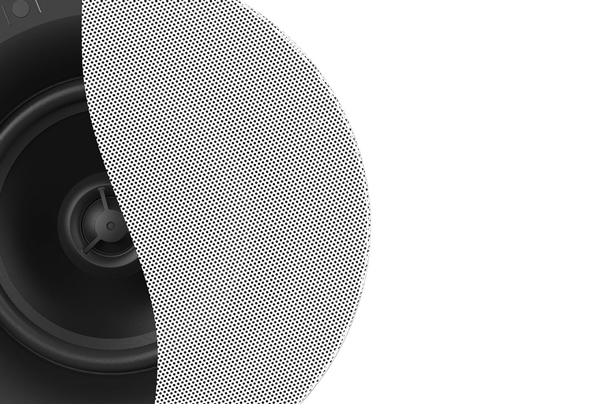

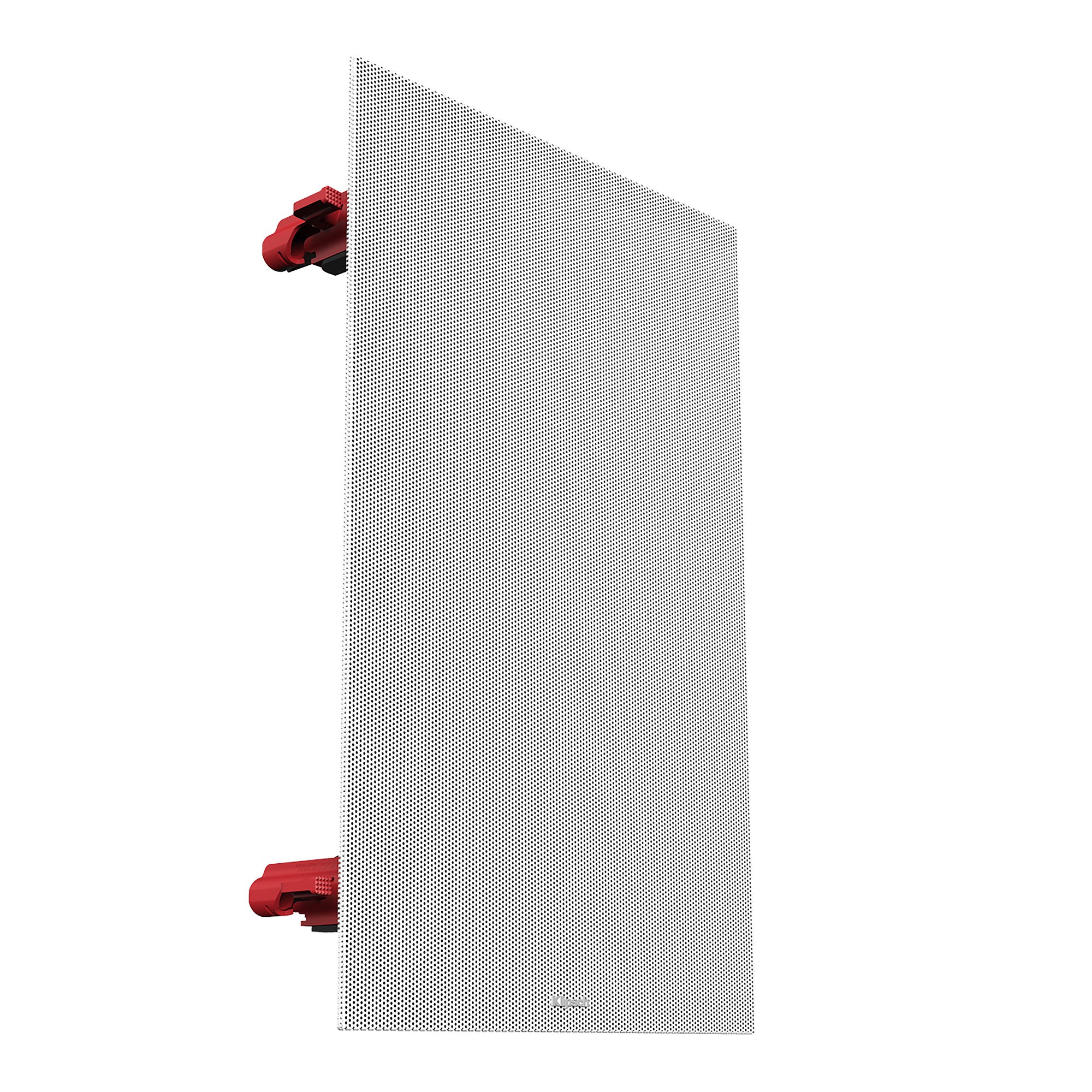

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
HORN-LOADED PERFORMANCE
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
| Specifications | |
|---|---|
| Frequency Range | 77Hz - 20kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 6.5” (16.51cm) Polypropylene Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D) |
| Mounting Depth | 3.78” (9.6cm) |
| Cutout Dimensions | 13” H X 8” W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included | Magnetic Grille |
| Installation Kit | IK-650-W II (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
