Klipsch In-Ceiling Speaker DS160CSM
Authorized Dealer
Price Match Guarantee
DS-160CSM
Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CSM features a 6.5” Polypropylene woofer and dual 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.
Features:
- 6.5” Polypropylene woofer
- Dual 1” Silk Dome tweeter
- Patent-Pending SkyHook™ Tool-Free Installation System

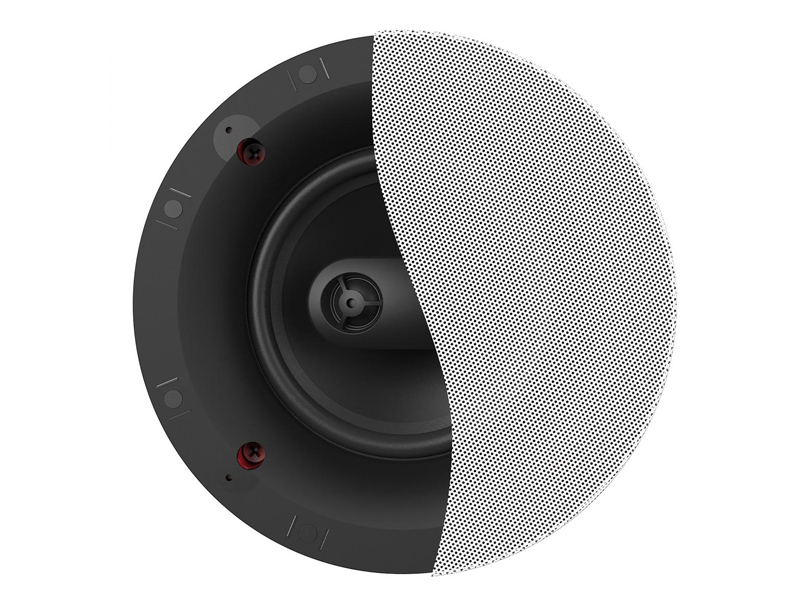

- Bezel-Free Magnetic Grille

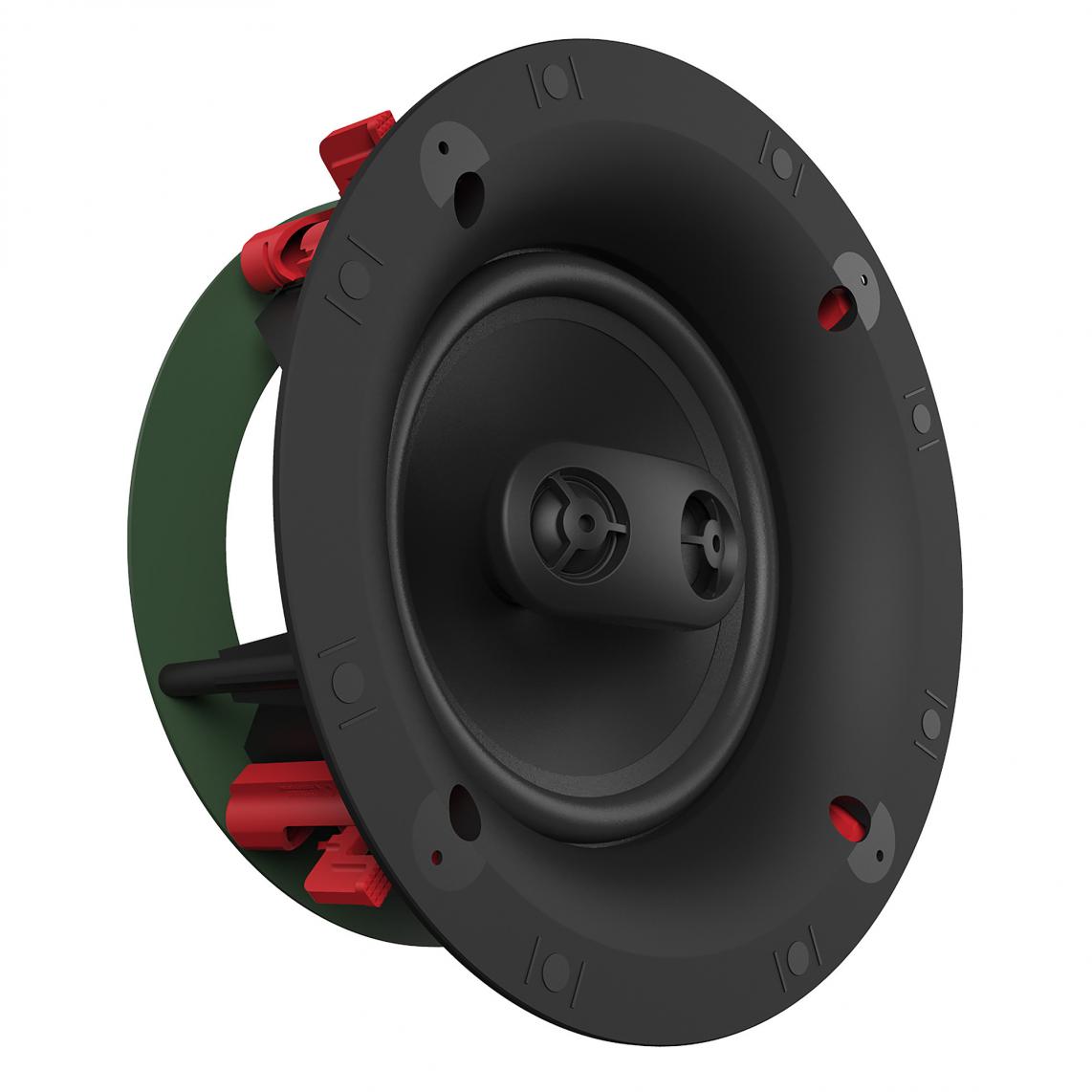

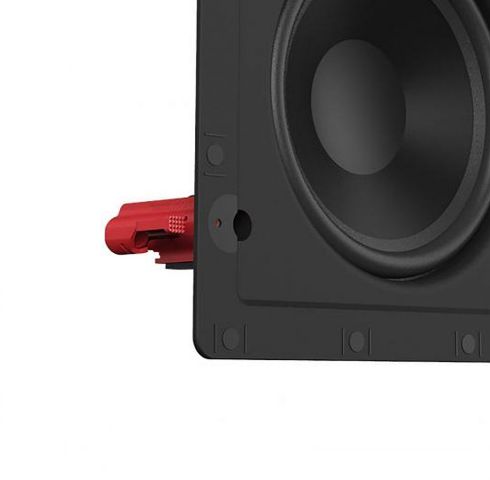

SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

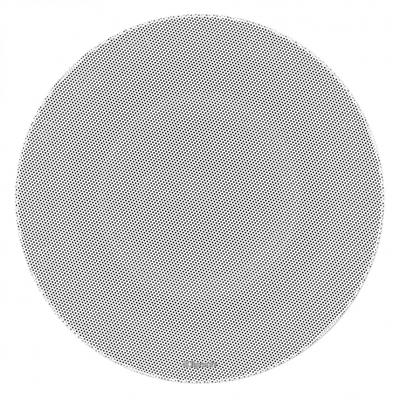

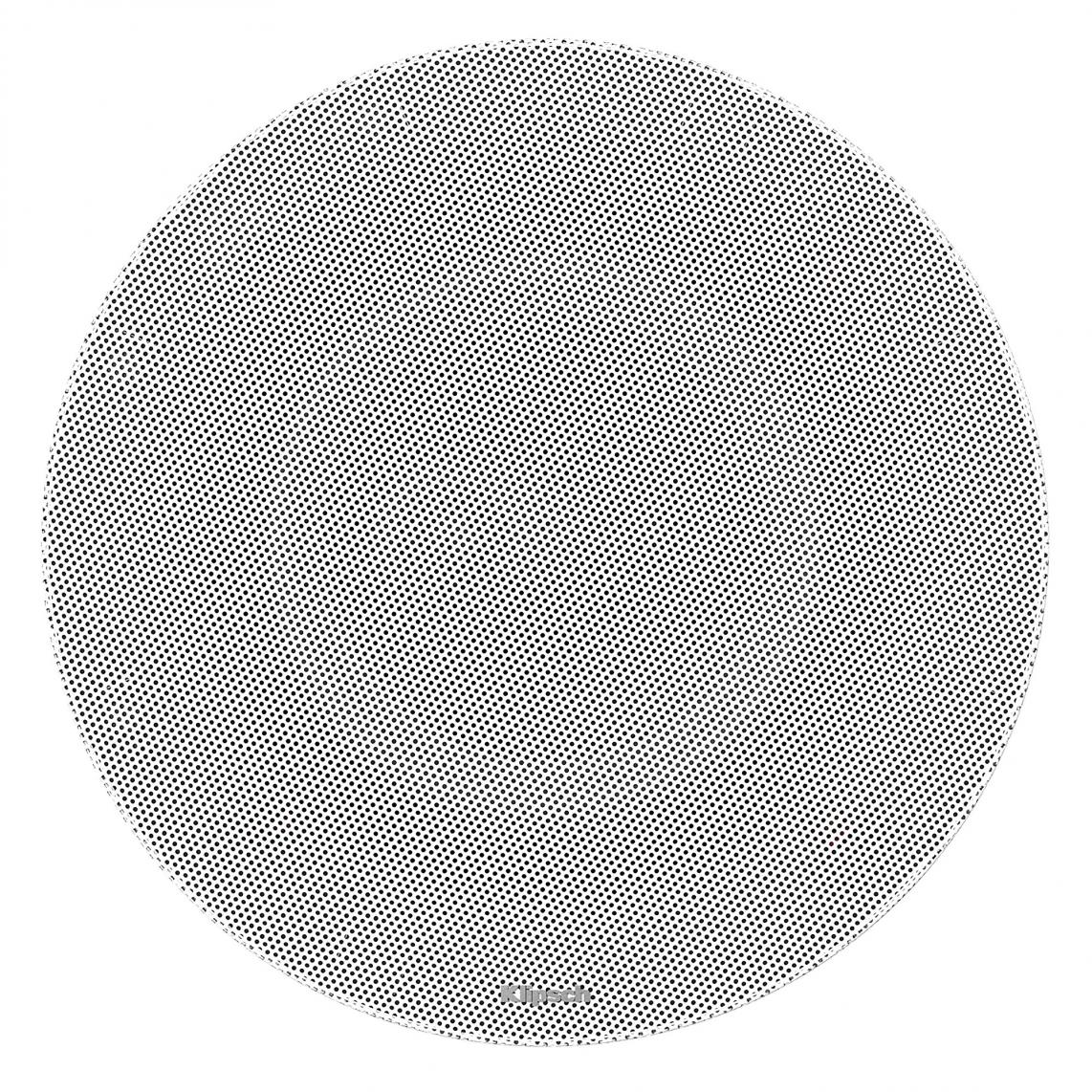

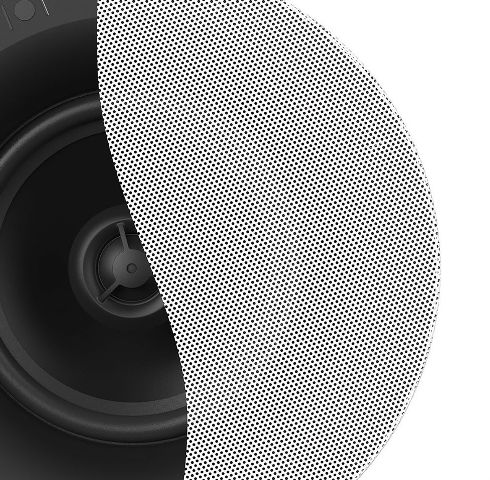

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
HORN-LOADED PERFORMANCE
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
| Specifications | |
|---|---|
| Low Frequency Driver | 6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer |
| Frequency Response | 77Hz - 20kHz +/- 3dB |
| High Frequency Driver | Dual .75" (1.9cm) Silk Dome Tweeters |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 160° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D) |
| Mounting Depth | 4.34” (11.03cm) |
| Cutout Dimensions | 8.3” (21.1cm) |
| Product Weight | 7 lbs (3.18kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-650-C II (Sold Separately) |
| Fire Rated Enclosure | ME-650-C (Sold Separately) |
