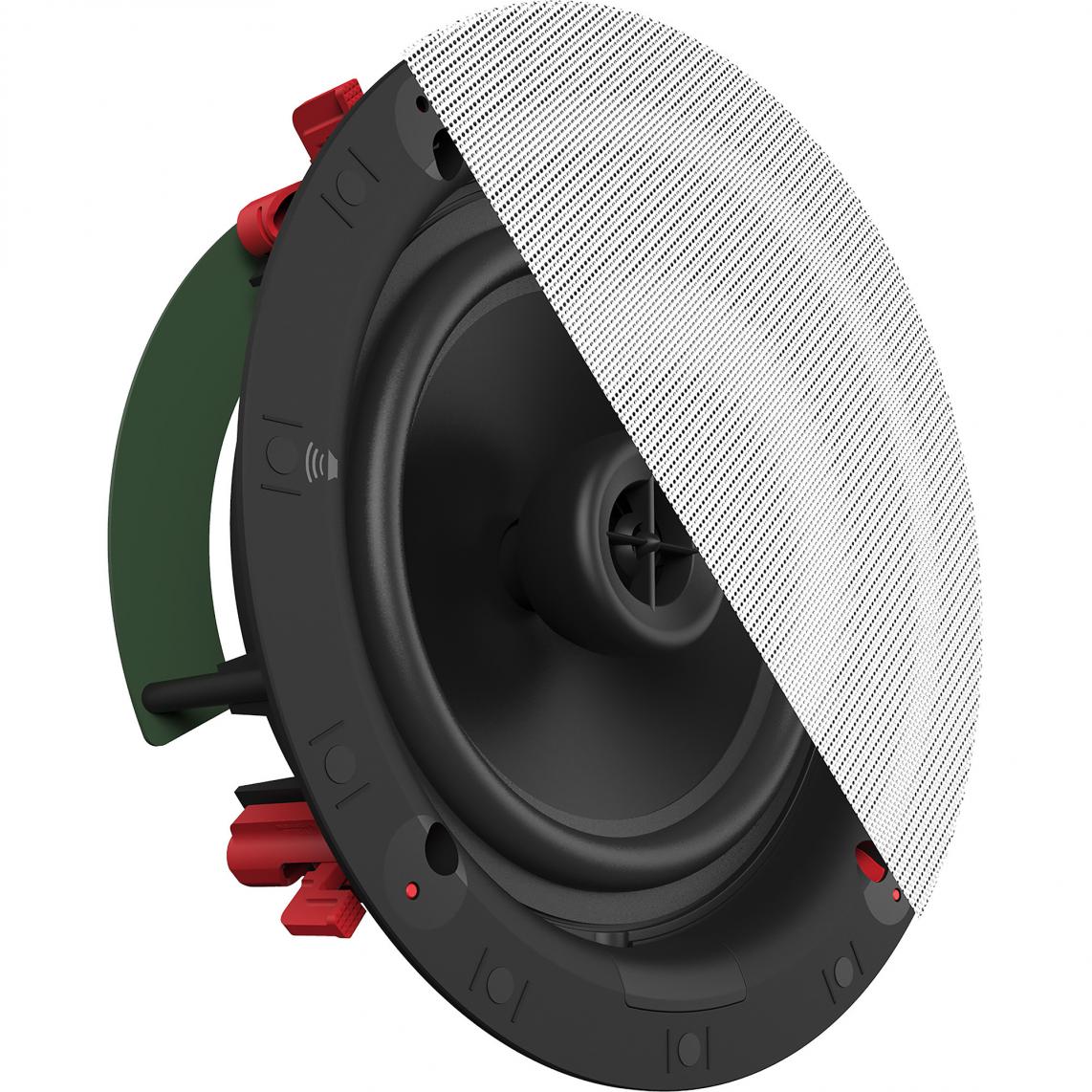

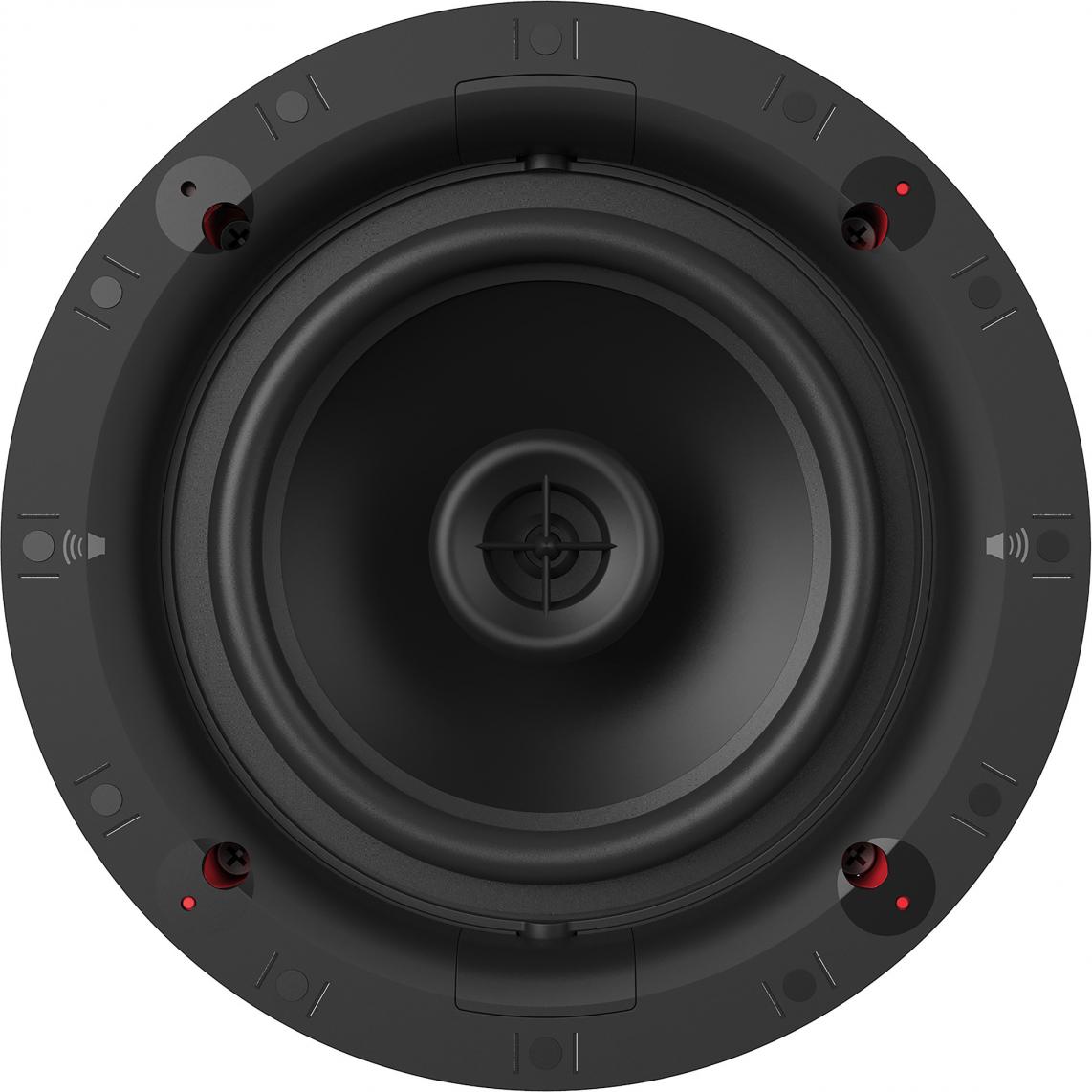

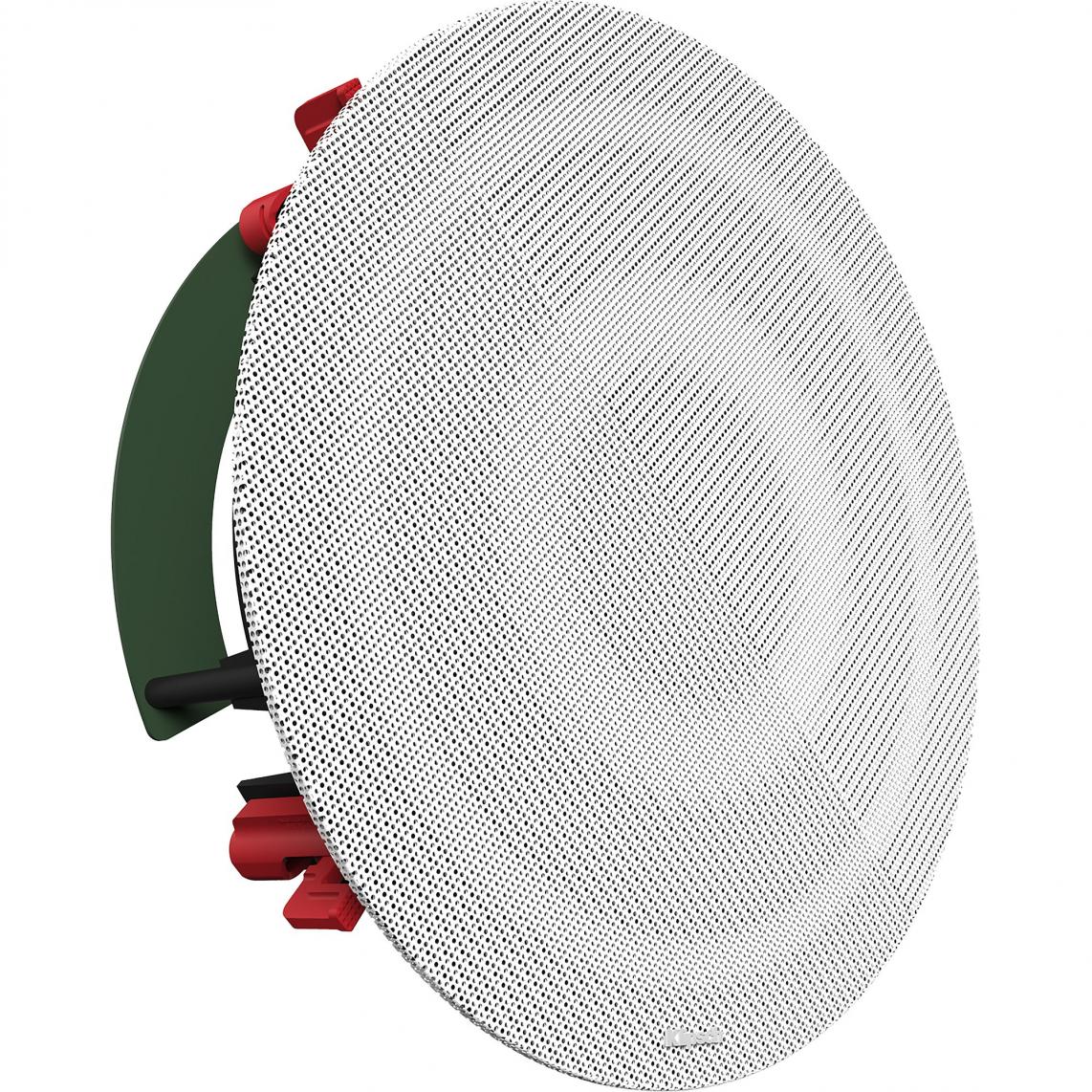

Klipsch In-Ceiling Speaker DS180CDT
DS-180CDT
Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features a 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.
Features:
- 8” Polypropylene woofer

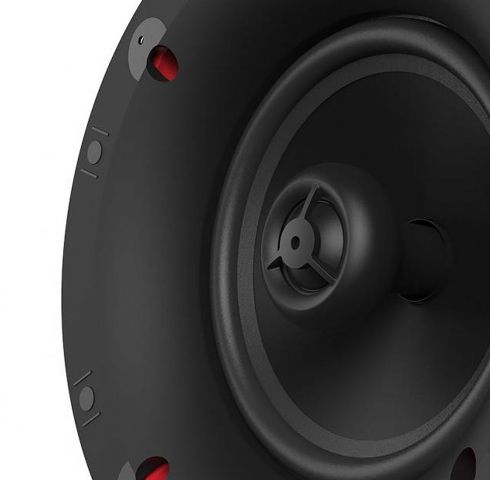

- 1” Pivot Silk Dome tweeter
- Patent-Pending SkyHook™ Tool-Free Installation System
- Bezel-Free Magnetic Grille

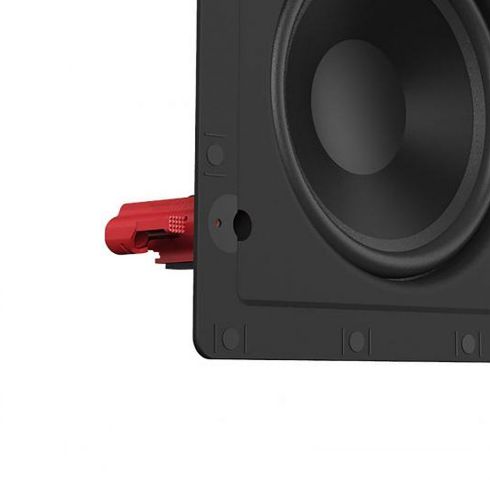

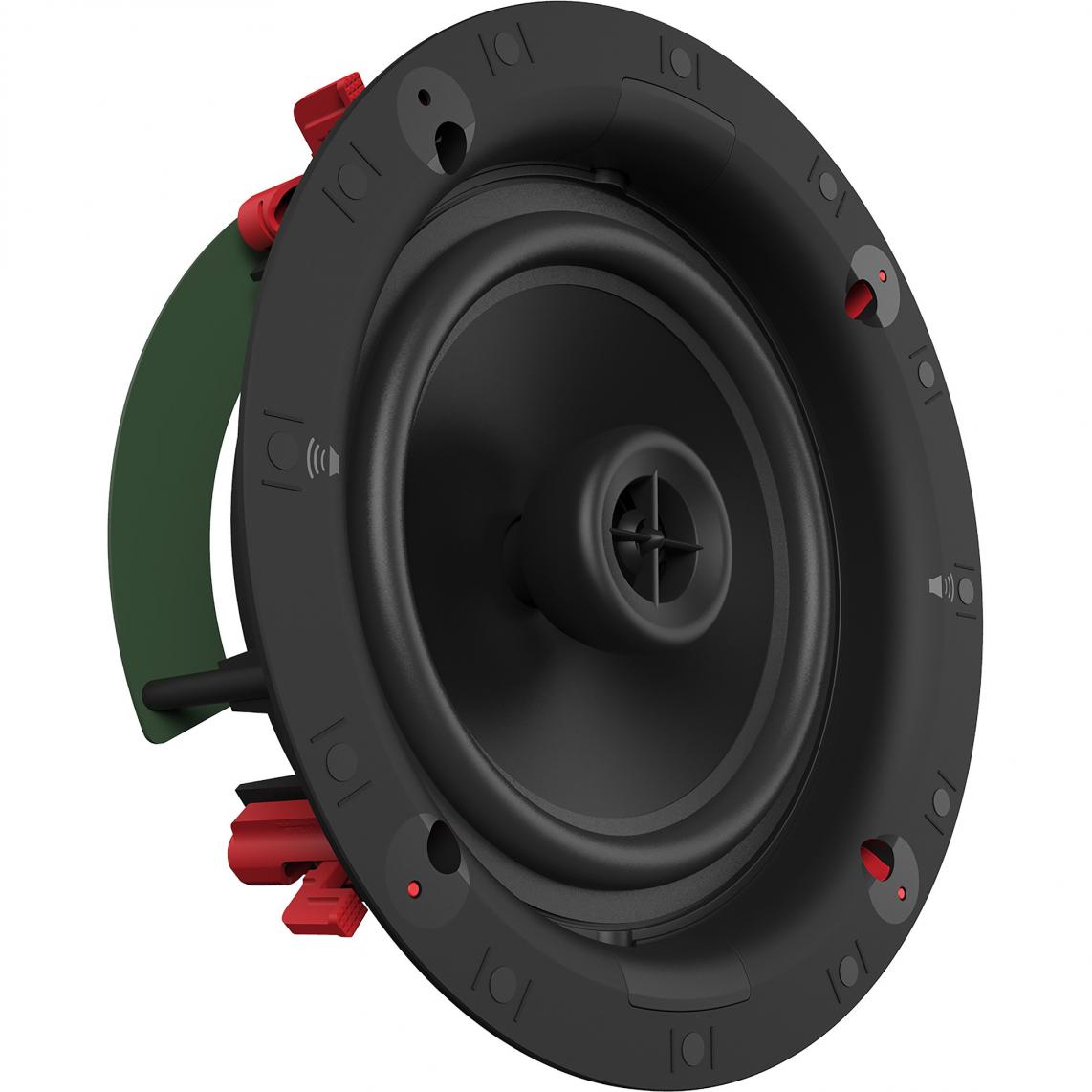

SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

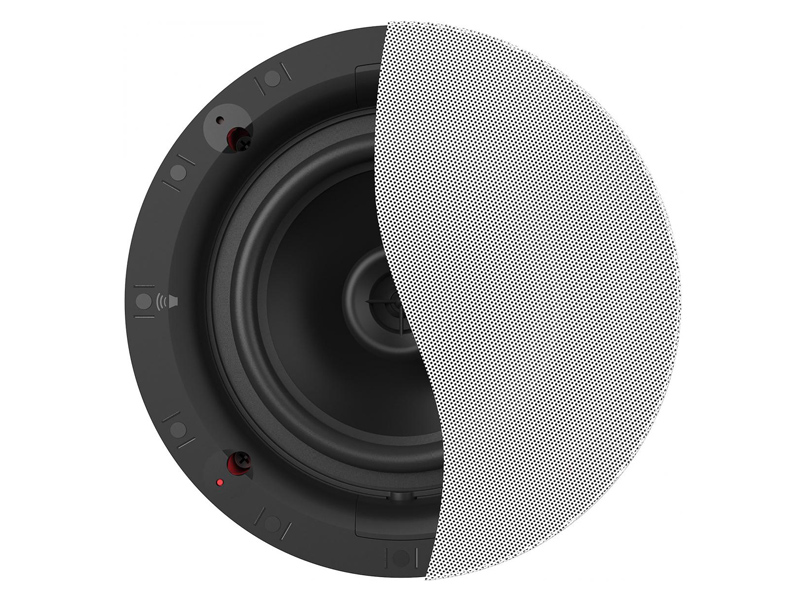

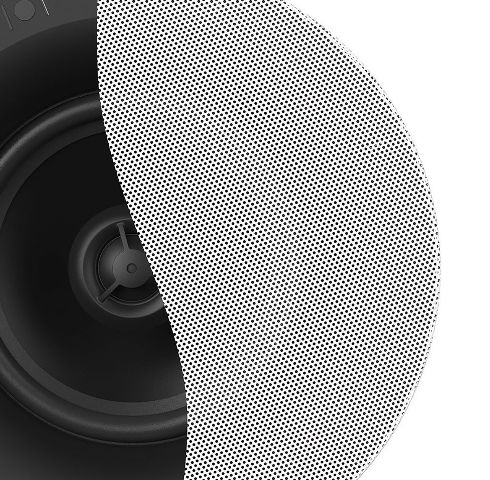

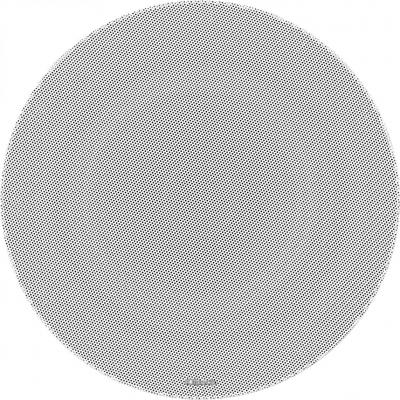

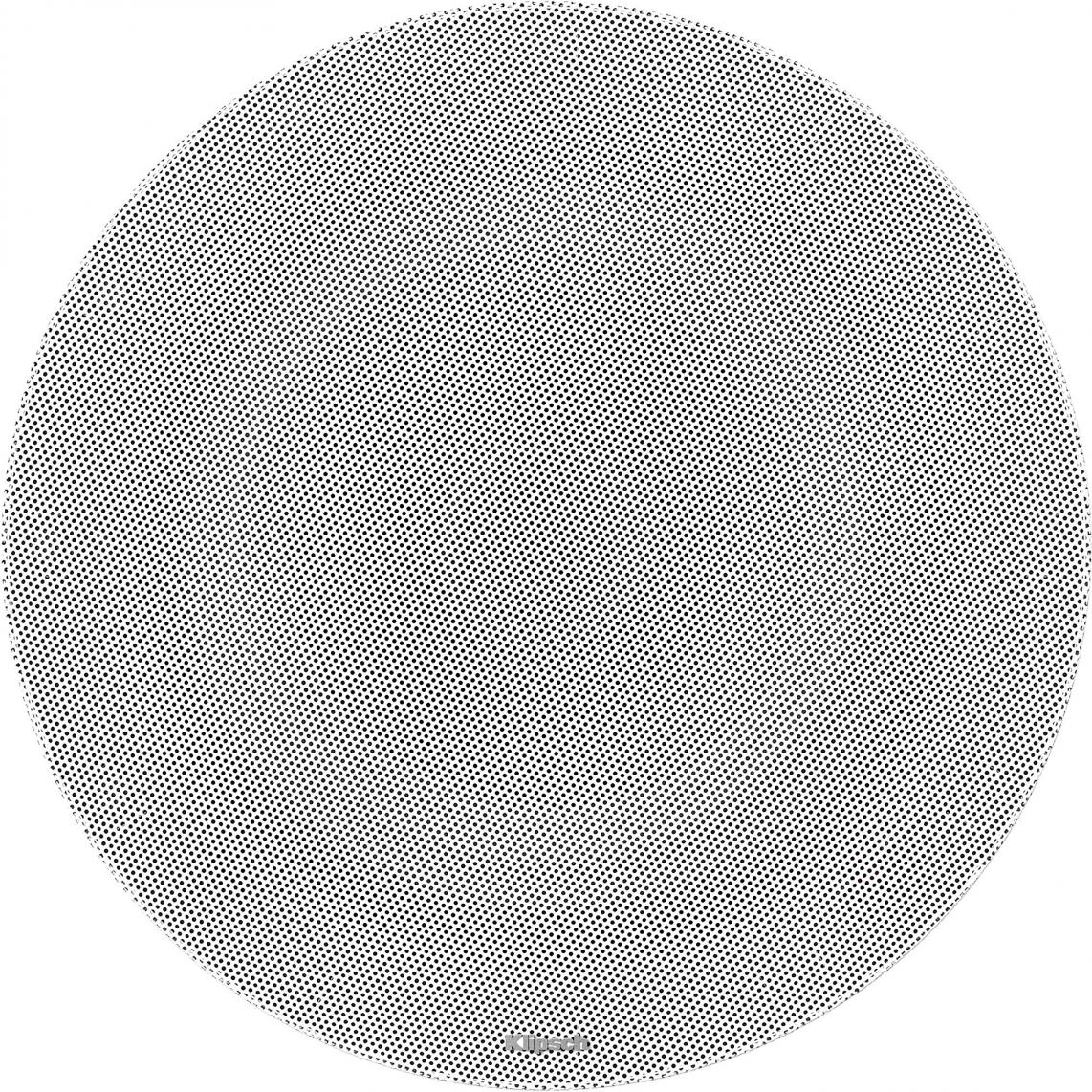

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
HORN-LOADED PERFORMANCE
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
Specifications | |
---|---|
Frequency Range | 73Hz - 20kHz +/- 3dB |
High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
Low Frequency Driver | 8" (20.32cm) Polypropylene Woofer |
Sensitivity | 94 dB @ 2.83V / 1m |
Coverage Angle | 100° |
Power Handling | 50W RMS / 200W RMS |
Impedance | 8 Ohm Compatible |
Enclosure Type | ABS/Infinite Baffle |
Finish | Black Baffle/Frame, White Paintable Grille |
Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
Mounting Depth | 4.45” (11.3cm) |
Cutout Dimensions | 9.8” (24.9cm) |
Product Weight | 7.4 lbs (3.36kg) |
Included | Flat Paintable Magnetic Grille |
Installation Kit | IK-800-C II (Sold Separately) |
Fire Rated Enclosure | ME-800-C (Sold Separately) |
