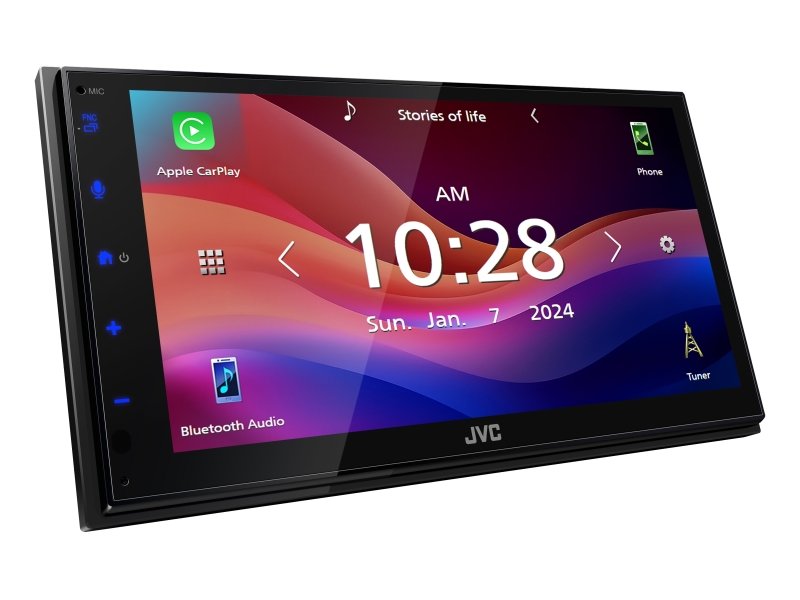

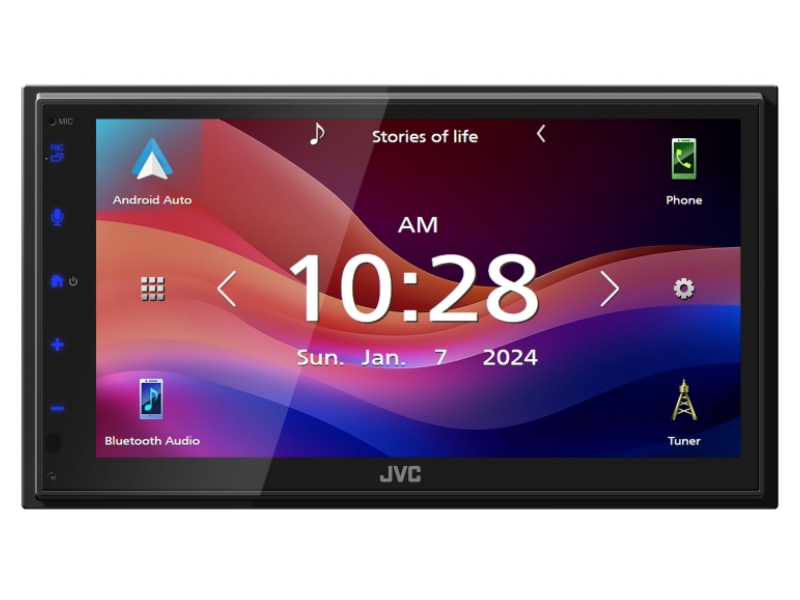

6.8" JVC Digital Media Receiver featuring Apple CarPlay Android Auto Bluetooth - KW-M695BW

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / Wireless Mirroring / Bluetooth® / iDatalink Maestro Ready / SiriusXM Ready / 13-Band EQ / Short Chassis

KW-M695BW_1


KW-M695BW_2

SMARTPHONE INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.


KW-M695BW_3

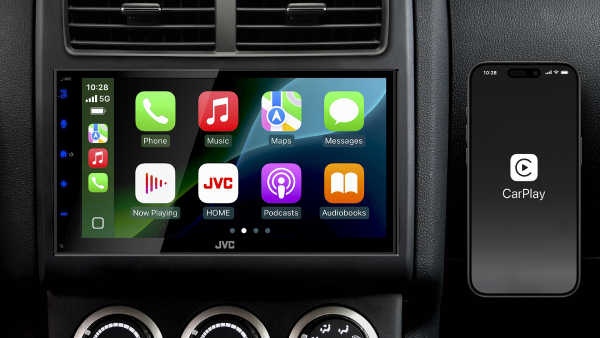

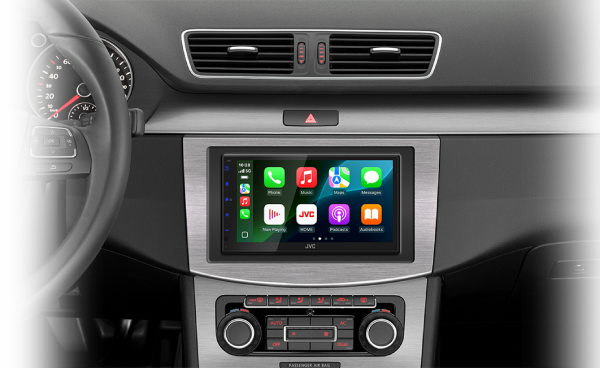

Apple CarPlay® – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Some features, applications, and services are not available in all areas.

KW-M695BW_4

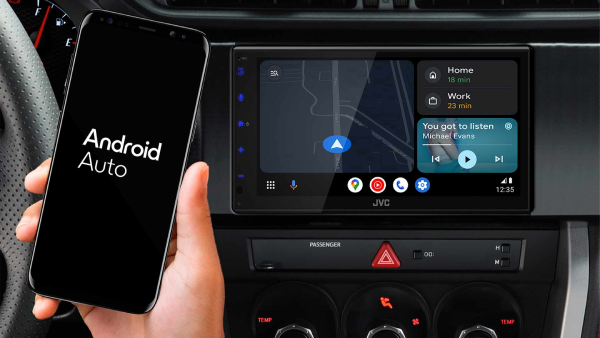

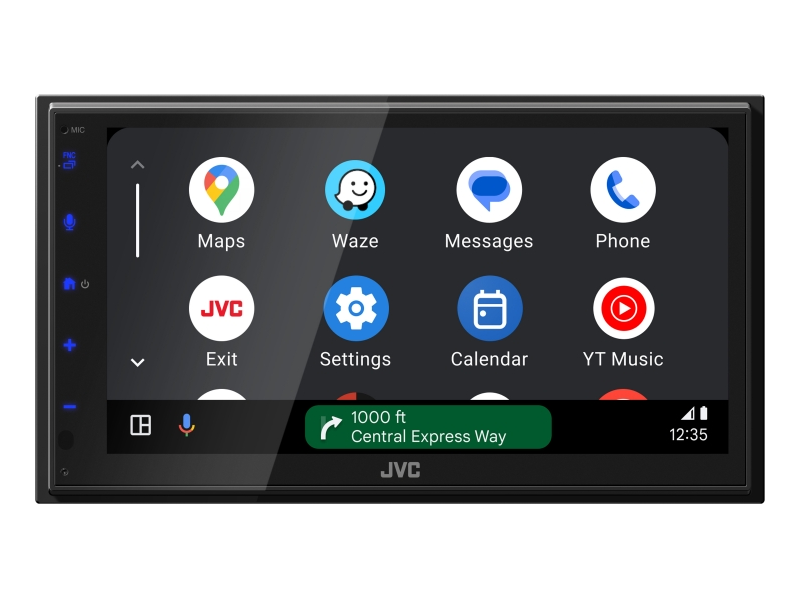

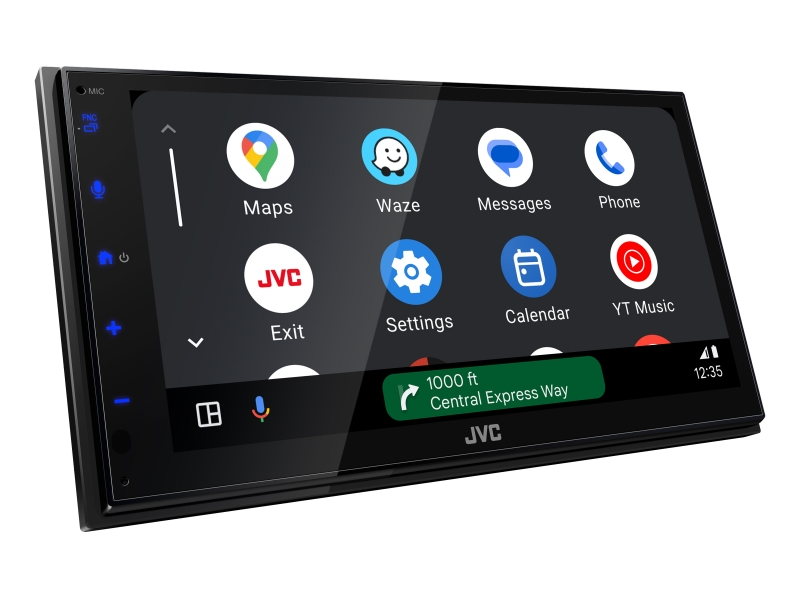

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required. *Some features and devices may not be available in all countries. Subject to availability.

KW-M695BW_5

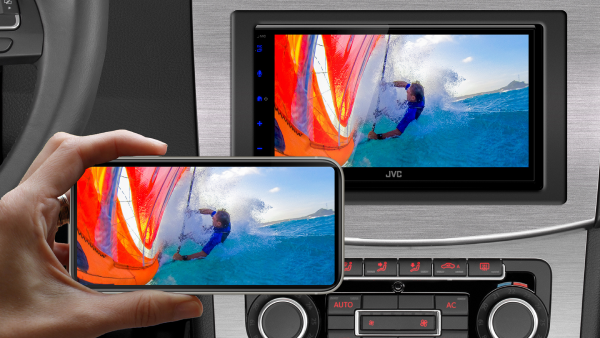

Wireless Mirroring

By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram. Touch control is possible from both screen and mobile phone.

*Selected mobile phones only


SOUND OPTIMIZATION


KW-M695BW_6

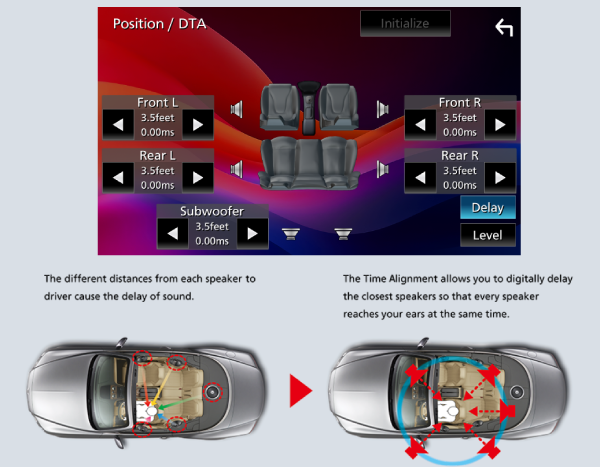

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.


KW-M695BW_7

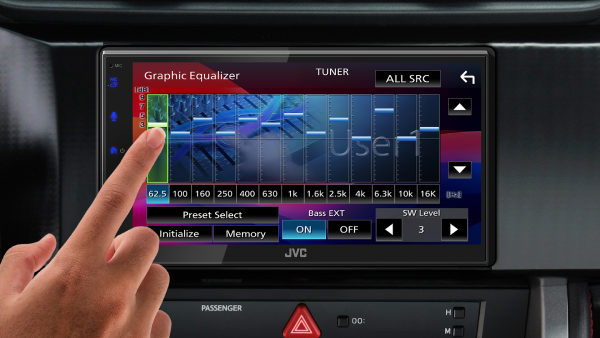

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.



Bluetooth® Wireless Technology


KW-M695BW_8

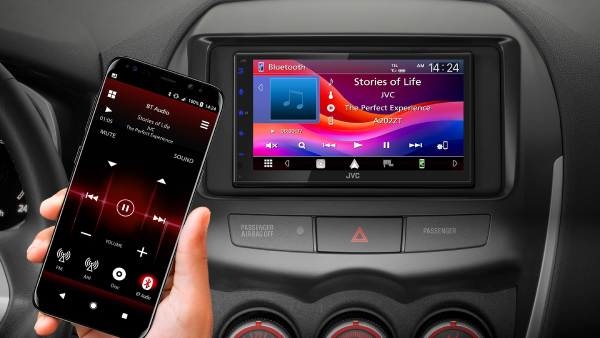

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.8 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.



Internet Radio/Digital Radio


KW-M695BW_9

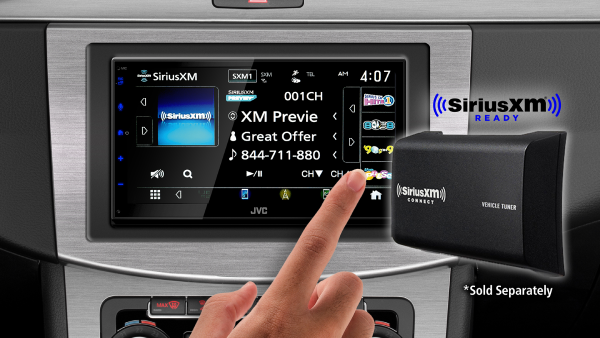

SiriusXM Ready

(optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.



General


KW-M695BW_10

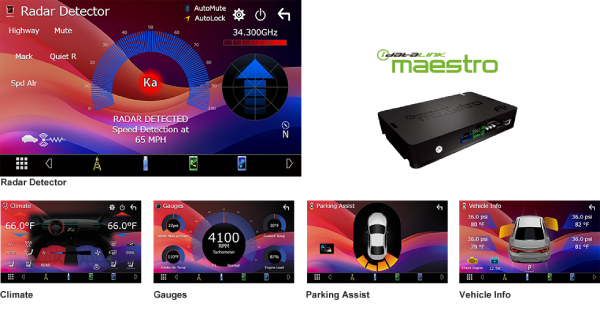

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).


KW-M695BW_11

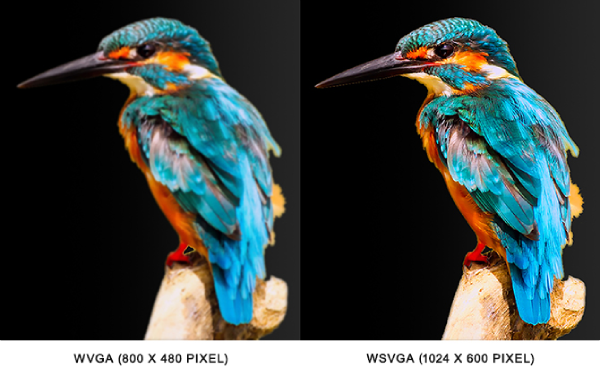

6.8" WSVGA LCD Display

The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.


KW-M695BW_12

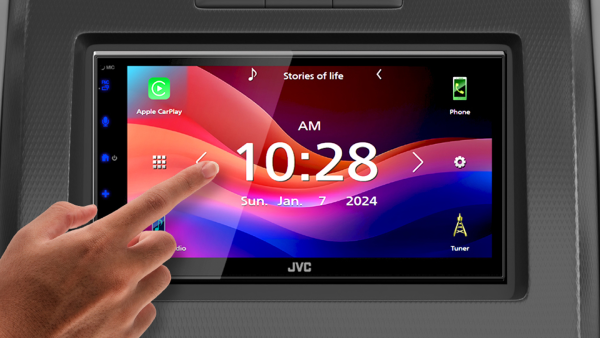

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.


KW-M695BW_13

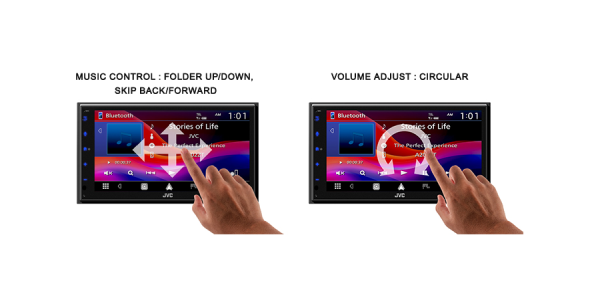

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.



High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A. *Compatibility depends on the smartphone.


KW-M695BW_14

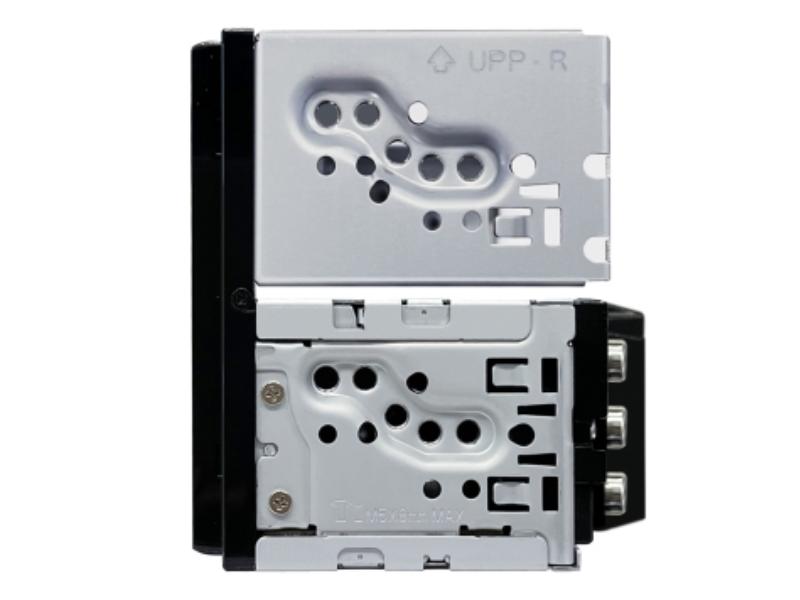

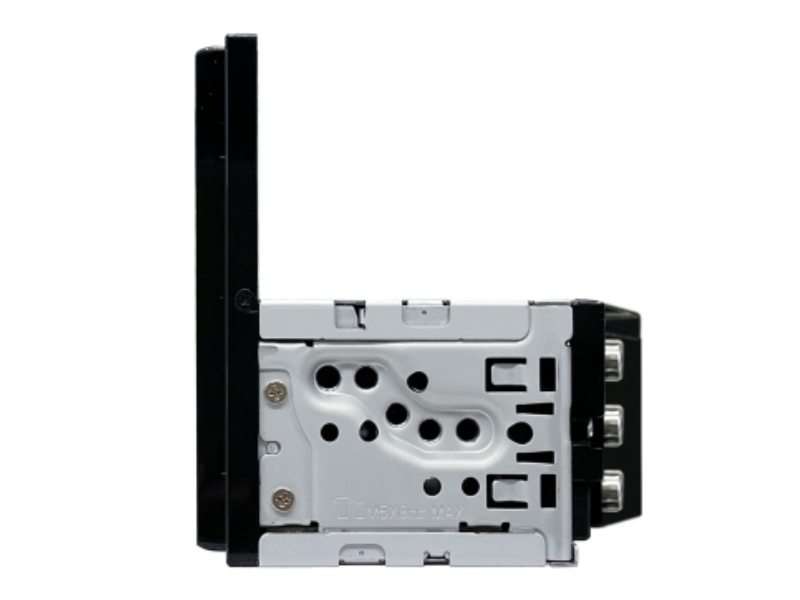

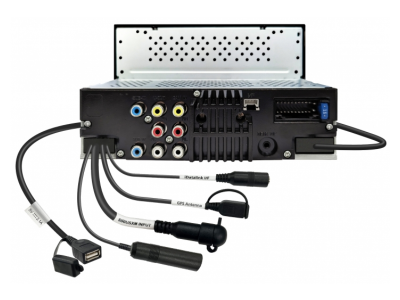

Short Chassis

Despite a double-DIN display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.



Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).


KW-M695BW_15

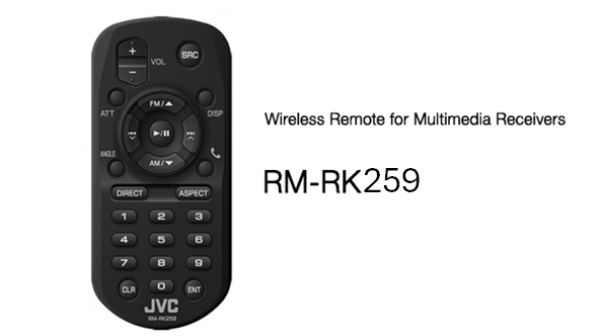

Remote Control (Optional)

Remote control (RM-RK259) is optionally available.


MONITOR
Screen Size6.8"W SVGA
Touch PanelCapacitive
Customizable GUIYes
Key Illumination ColorBlue
DimmerYes
Multilingual DisplayYes[4]
Media Playback
MP3 Compatible with TagUSB
WMA Compatible with TagUSB
WAV Compatible with TagUSB
AAC Compatible with TagUSB
FLAC Compatible with TagUSB
H.264 CompatibleUSB
WMV CompatibleUSB
MPEG 1/2 CompatibleUSB
MPEG 4 CompatibleUSB
MKV CompatibleUSB
Bluetooth Control
Built-in Bluetooth[1]Yes (Hands-Free MIC Built-in)
Hands Free CallYes (HFP1.7)
Audio Streaming & Control (A2DP, AVRCP)Audio Streaming & Control (A2DP, AVRCP)Yes
Supported Audio FormatsAAC / SBC
Voice Dialing (voice recognition compatible mobile phone required)Yes
Phone Book Access Profile (PBAP)Yes
Auto Pairing for iPhone/AndroidYes
Wi-Fi Control
Built-in Wi-FiYes
Android Control
Android Auto[2]Yes (via Wi-Fi or USB)
Mirroring for AndroidYes (via Wi-Fi) *Need mirroring App
Android Music PlaybackYes (via Bluetooth®)
iPod/iPhone Control
CarPlay[3]Yes (via Wi-Fi or USB)
Mirroring for iPhoneYes (via WiFi) *Need mirroring App
iPhone Music PlaybackYes (via USB or Bluetooth®)
USB
USB Portx 1 (High Speed)
PositionRear
USB Power SupplyYes (2.1A High Current Charging)
Radio Tuner
SiriusXM ReadyYes
Radio Broadcast Data System (RBDS)Yes
Preset Stations36(FM:24ch, AM:12ch)
Auto Memory EntryYes
FM - Frequency Range87.9 - 107.9MHz
AM - Frequency Range530-1,700kHz
Audio
Maximum Power Output (Front & Rear)50Wx4
Full Bandwidth Power (Front & Rear)22W x 4
EQYes (13-Band Graphic EQ)
Preset EQYes (7Preset + 3user)
Bass BoostYes
High-Pass Filter/Low-Pass FilterYes/Yes
Speaker Size ControlYes
Inputs and Outputs
Video Outx 1 (V:RCA)
Rear view camera InputYes
Line Output Terminals3Preouts, Sub WF (Mono, 2ch)
Pre-output Level/Impedance2.5V / 10k ohms
Subwoofer Output with Level/Frequency ControlYes (Normal / Reverse)
General
iDatalink Maestro ReadyYes
Back Up MemoryYes
Short ChassisYes
Wireless Remote ControlOptional (RM-RK259 required)
Steering Remote Control ReadyYes
