Lowrance 9" HDS/GPS LIVE with Active Imaging 3-in-1 - 000-14422-001

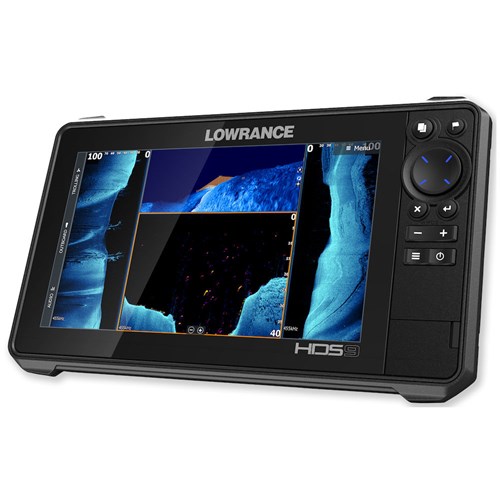

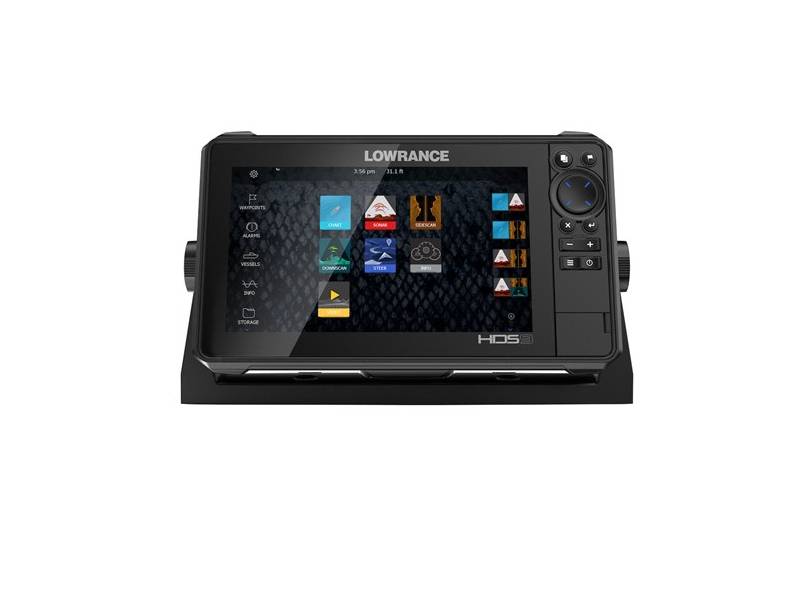

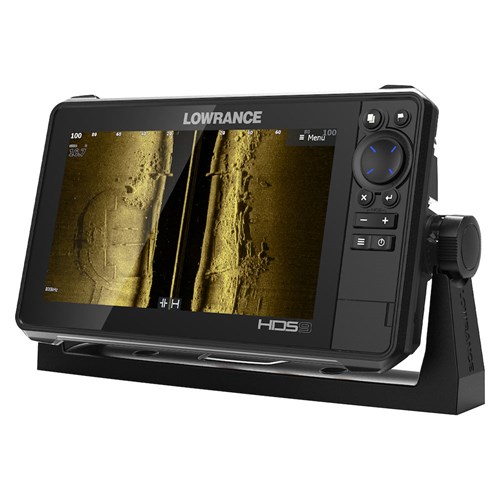

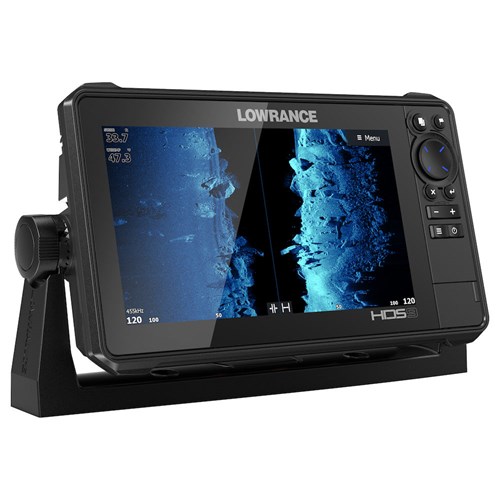

HDS-9 LIVE - Active Imaging 3-in-1
Featuring support for the best suite of fishfinding tools from Active Imaging™ and LiveSight™ real-time sonar to StructureScan® 3D with Active Imaging and Genesis Live onscreen mapping, HDS LIVE 9 is the perfect solution for anglers who want the best sonar and navigation technology in a mid-sized display.
You've Never Fished Like This Before
With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP® US Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.
Fish in Real-Time with LiveSight™ Sonar
The next weapon in an angler’s arsenal, LiveSight real-time sonar is the perfect addition to America’s Number One Fishfinder.
Take your HDS LIVE system to the next level with live views of bait and fish movements. Watch fish react to your bait and know what is working, what isn't and what to do next. Set up a two-panel splitscreen and find the fish with Active Imaging, then watch fish hit your bait – as it happens – with LiveSight real-time sonar.
Turn all your fishing into sight fishing with LiveSight.
Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.
Transducers sold separately.

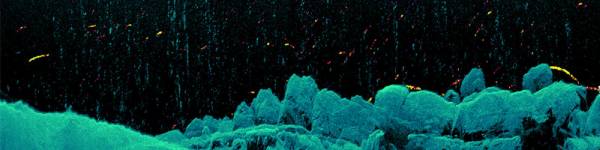

FishReveal
Makes fish easier to see on DownScan Imaging™ by combining CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish. FishReveal removes the need to display CHIRP sonar and DownScan Imaging in a two-panel split-screen.
Mapping in Real-Time
Update the mapping of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. Target key fishing areas with Genesis Live maps, which makes it easy to find areas where fish like to hide, like drop-offs, points, ditches and more. A truly customizable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading color palettes, and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card

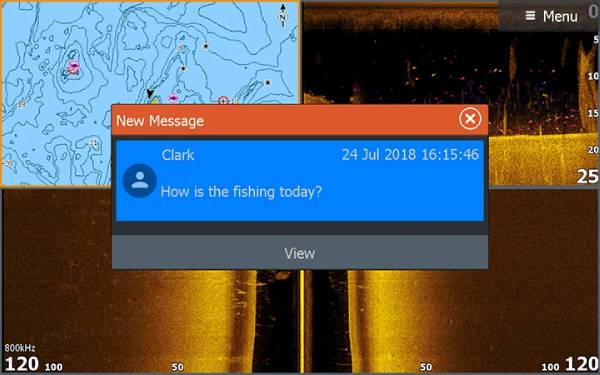

Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display.
LiveCast Smartphone Integration (HDS LIVE 16/12 only)
You no longer have to choose between watching the big game and spending a day on the water with LiveCast™ smartphone integration. Watch video, view Google maps and fishing data on the high-resolution screen of your HDS LIVE display via the HDMI connection on HDS LIVE 16- and 12-inch models. View data from your smartphone and keep your eye on the fish with a LiveCast-sonar split screen.
Key Features
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D compatible*
- LiveSight real-time sonar compatible*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View

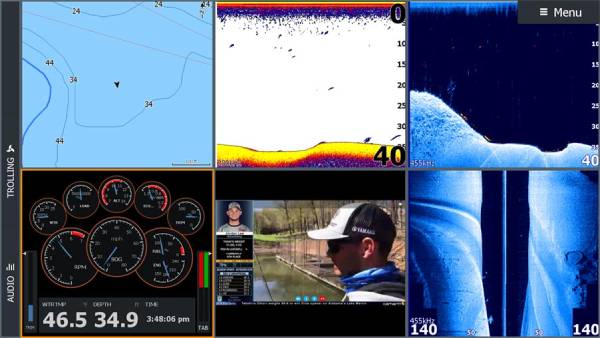

- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
| Specifications | |
|---|---|
| Screen Brightness | >1200 Nits |
| Update rate | 10 Hz |
| GPS | 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
| Shock Vibration | 100,000 cycles of 20 G |
| Dimensions W x H x D | 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm) |
| Supply Voltage | 12 v DC (10.8-17VDC) |
| Compass Safe | 12" (300mm) |
| Display Resolution | 1280 x 720 |
| GPS Receiver Channels | 16 |
| NMEA 2000 Connectivity | 1x Micro-C |
| SD Card Storage | 2 micro SD cards up to 32GB |
| Ethernet Ports | 2 x 100 Mbit, 6 max MFD's on a network |
| Warranty Period | 2 Year + 3 additional years of upgrade options totaling 5 years |
| Power Consumption typical | 2.0A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption min | 2.0A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption max | 2.9A @ 13VDC with Full Backlight, Sonar on |
| Position Accuracy | 20m RMS |
| Waypoints, Routes, Tracks | 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail |
| Time to First Fix | 30s |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Radar compatibility | 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Recommended Fuse Rating | 5A |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Internal Storage | 8.0 GB Internal |
| Viewing Angles | 80° top/bottom, 80° left/right |
| AIS | AIS Chart and Radar overlay. Target vessel details. |
| Charts supported | C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners |
| Cartography included | C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models) |
| Steering Modes | Course Heading Waypoint Power Steer |
| Manouevres Turn Patterns | Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S |
| Digital Switching | Czone, Naviop |
| Correction | DGPS, WAAS |
| Approvals Compliance | FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM |
| Mounting Type | Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Sonar Compatibility | Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D |
| Item Connectivity WiFi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| Waterproofrating | IPX7 with card door closed |
| Languages | Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
| PC Connectivity | None |
| Autopilot | Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| Video | Output: No Input: Composite video RCA - single channel via optional adaptor |
| Backlight Color | Pure White LED |
| N2K PGNs | Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration |
| Weather | SiriusXM via WM-3 (USA only) |
| Multimedia | SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products |
| Interface | Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light |
| NMEA 0183 Sentences supported | TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000. |
