Lowrance HDS-7 HDS/GPS Live Fish Finder With No Transducer - 000-14415-001
Authorized Dealer
Price Match Guarantee
| Price | $1,599.99 |
| Savings | $700.00 |
| Our Price |
$899.99 CAD |
Or as low as $150.00/month over 6 months. Apply Now

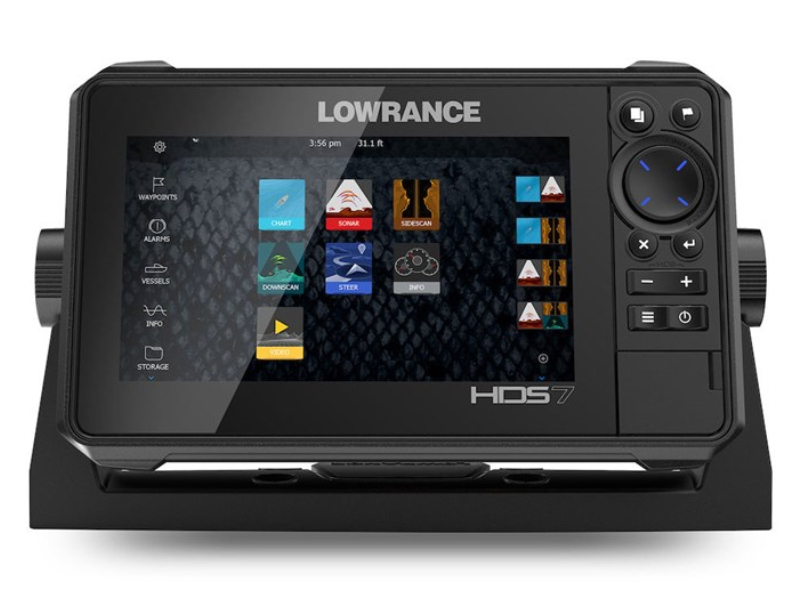

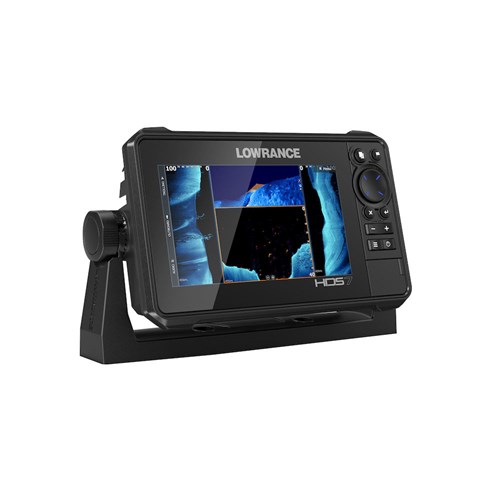

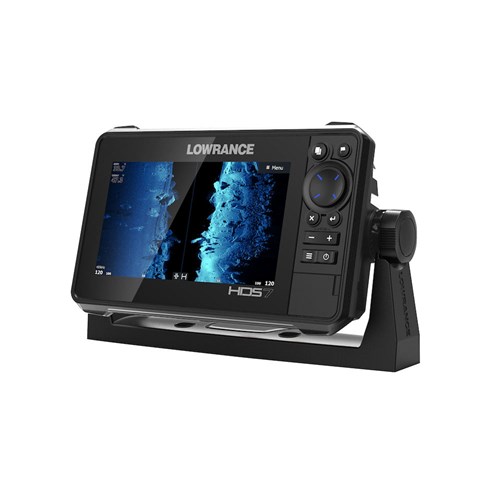

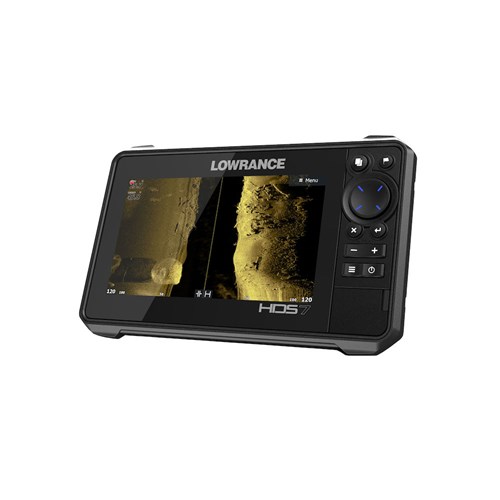

Lowrance HDS-7 HDS/GPS Live Fish Finder With No Transducer - 000-14415-001
HDS-7 LIVE - No Transducer
Rig your boat with an HDS LIVE 12 and get access to the top fishfinding innovations with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and Genesis Live onscreen mapping, plus the capability to view data in a six-panel splitscreen.
You've Never Fished Like This Before
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and the new ActiveTarget™ Live Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP® US Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.
Target Fish Live with New ActiveTarget™ Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.
Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.
FishReveal
Makes fish easier to see on DownScan Imaging™ by combining CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish. FishReveal removes the need to display CHIRP sonar and DownScan Imaging in a two-panel split-screen.
Mapping in Real-Time
Update the mapping of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. Target key fishing areas with Genesis Live maps, which makes it easy to find areas where fish like to hide, like drop-offs, points, ditches and more. A truly customizable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading color palettes, and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card.
Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display.
LiveCast Smartphone Integration (HDS LIVE 16/12 only)
You no longer have to choose between watching the big game and spending a day on the water with LiveCast™ smartphone integration. Watch video, view Google maps and fishing data on the high-resolution screen of your HDS LIVE display via the HDMI connection on HDS LIVE 16- and 12-inch models. View data from your smartphone and keep your eye on the fish with a LiveCast-sonar split screen.
Key Features
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D compatible*
- LiveSight real-time sonar compatible*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
| Specifications | |
|---|---|
| Screen Brightness | >1200 Nits |
| Update rate | 10 Hz |
| GPS | 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
| Shock Vibration | 100,000 cycles of 20 G |
| Supply Voltage | 12 v DC (10.8-17VDC) |
| Compass Safe | 12" (300mm) |
| Display Resolution | 1024 x 600 |
| Dimensions W x H x D | 9.21in (234.01mm) x 5.73in (145.6mm) x 3.06in (77.7mm) |
| GPS Receiver Channels | 16 |
| NMEA 2000 Connectivity | 1x Micro-C |
| SD Card Storage | 2 micro SD cards up to 32GB |
| Ethernet Ports | 1x 100 Mbit, 6 max MFD's on a network |
| Warranty Period | 2 Year + 3 additional years of upgrade options totaling 5 years |
| Power Consumption typical | 1.7A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption min | 1.7A @ 13VDC with Full Backlight, Sonar on |
| Position Accuracy | 20m RMS |
| Power Consumption max | 2.4A @ 13VDC with Full Backlight, Sonar on |
| Waypoints, Routes, Tracks | 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail |
| Time to First Fix | 30s |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Radar compatibility | 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Recommended Fuse Rating | 5A |
| Weight | 3.04lb (1.38kg) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Internal Storage | 8.0 GB Internal |
| Viewing Angles | 80° top/bottom, 80° left/right |
| AIS | AIS Chart and Radar overlay. Target vessel details. |
| Charts supported | C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners |
| Cartography included | C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models) |
| Steering Modes | Course Heading Waypoint Power Steer |
| Manouevres Turn Patterns | Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S |
| Digital Switching | Czone, Naviop |
| Correction | DGPS, WAAS |
| Approvals Compliance | FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM |
| Mounting Type | Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Sonar Compatibility | Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D |
| Item Connectivity WiFi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| Waterproofrating | IPX7 with card door closed |
| Languages | Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
| PC Connectivity | None |
| Autopilot | Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway |
| Video | Output: No Input: HDMI Composite video RCA - single channel via optional adaptor |
| Backlight Color | Pure White LED |
| Weather | SiriusXM via WM-3 |
| Multimedia | SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products |
| Interface | Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light |
| NMEA 0183 Sentences supported | TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000. |
