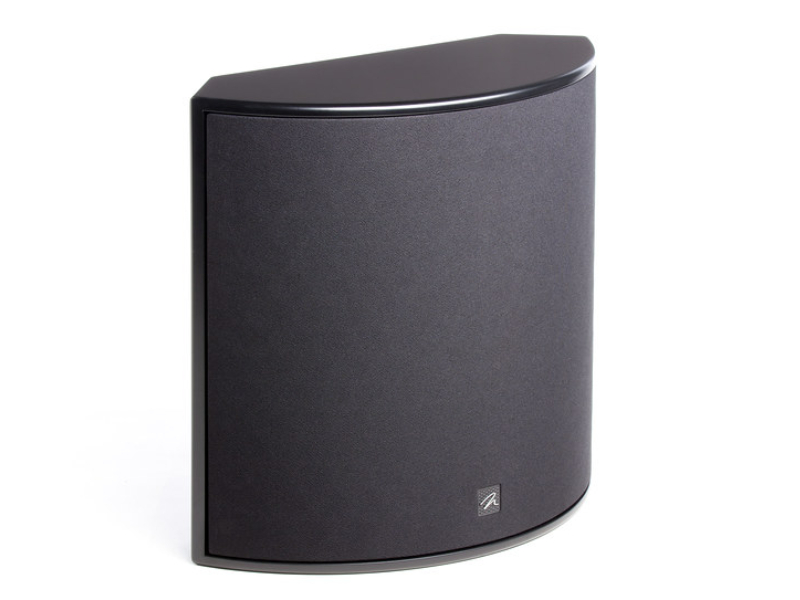

ElectroMotion FX2

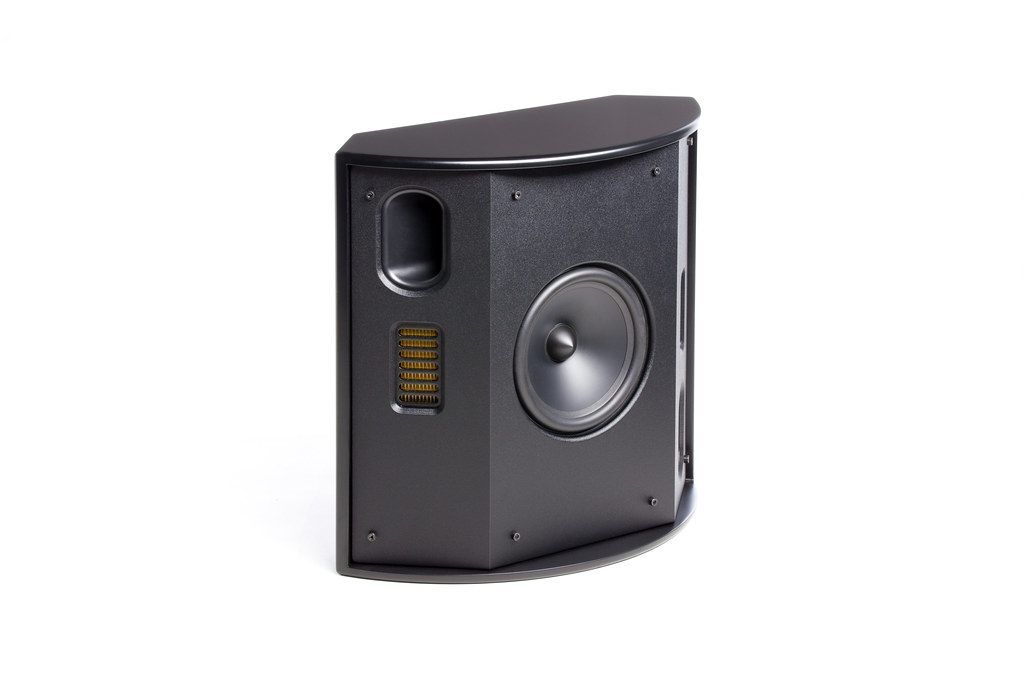

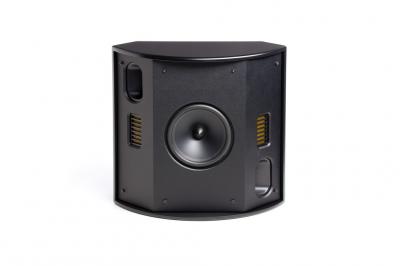

Dual Folded Motion XT tweeters in a wide- dispersion array ideally suited for surround channel applications.

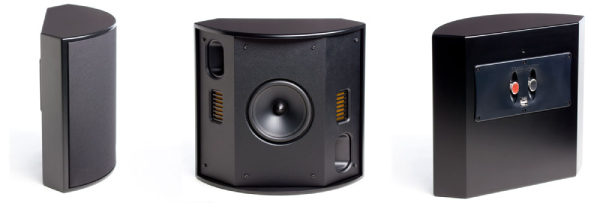

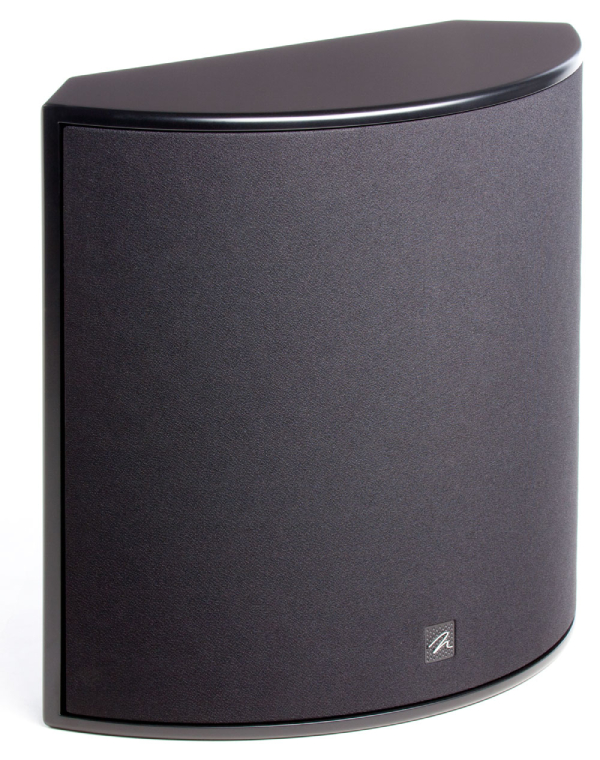

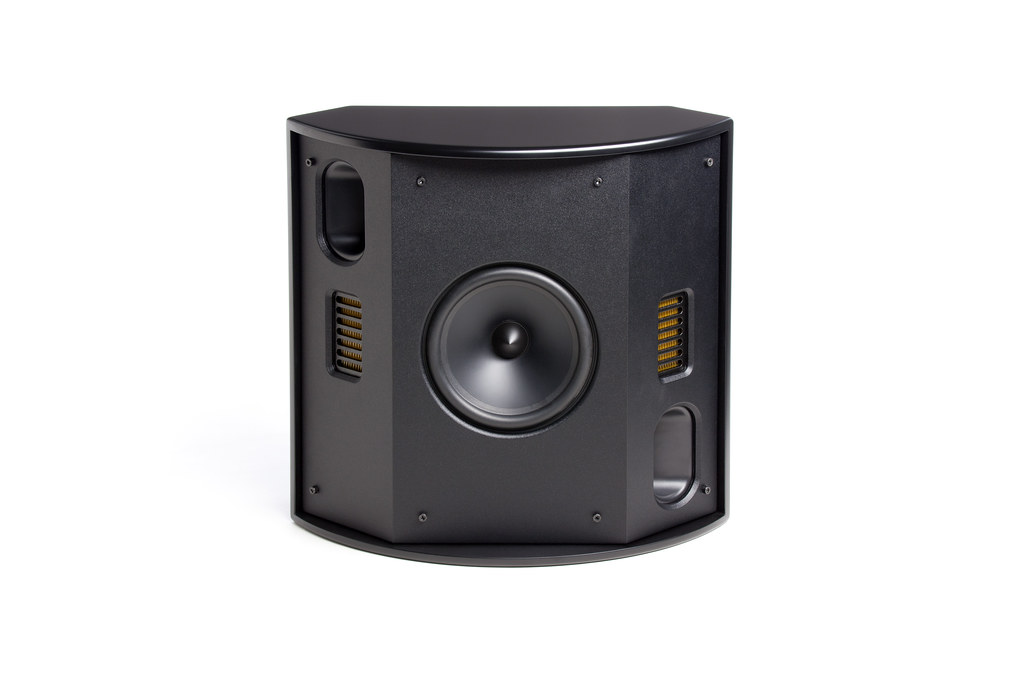

The EM-FX2 features dual Folded Motion XT tweeters in a wide-dispersion array ideally suited for surround channel applications. A single 6.5-inch doped fiber-cone woofer provides powerful low-frequency extension. Available in a black satin finish, the EM-FX2 is designed to corner mount, wall mount or angle-wall mount for versatile surround sound placement in any room.

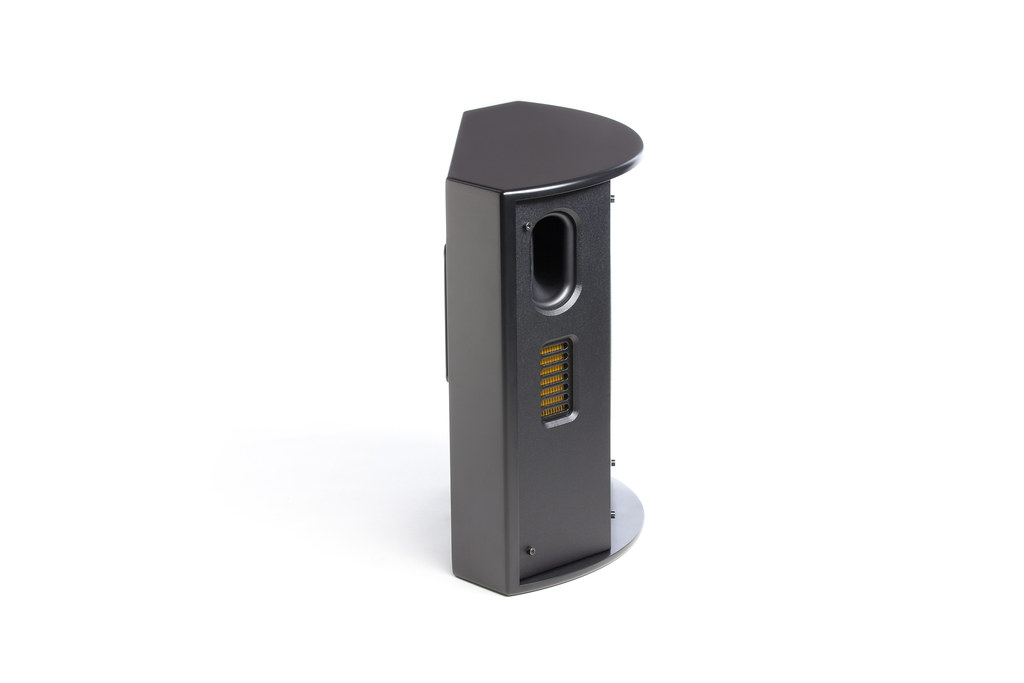

Folded Motion XT Tweeter
MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless center channel performance.
Slender Profile

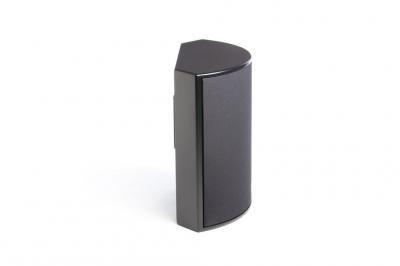

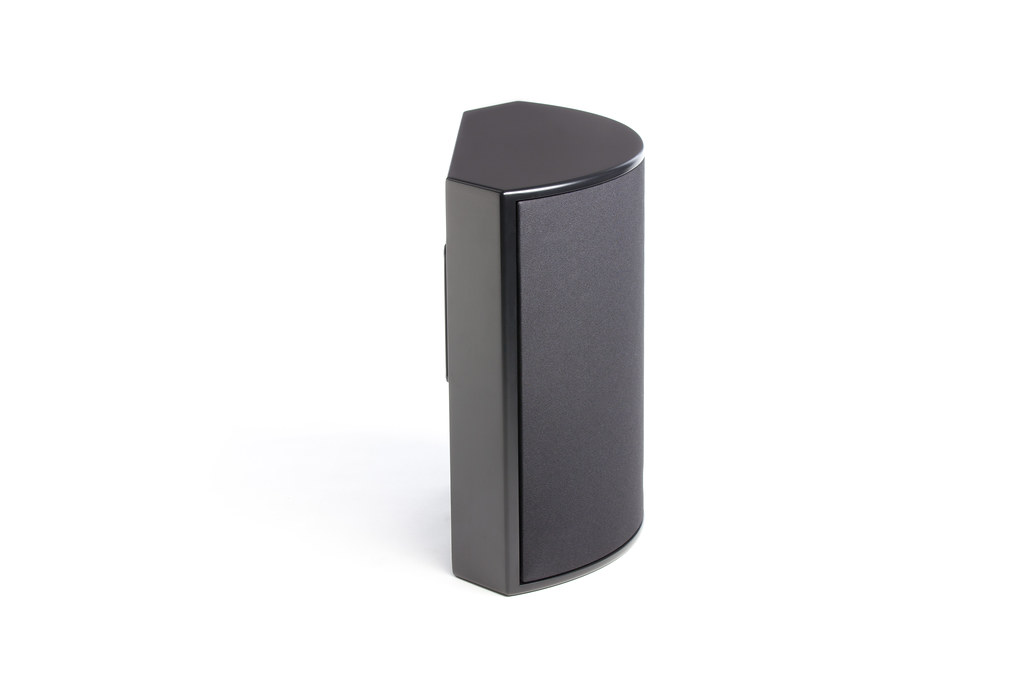

When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
| Specifications | |
|---|---|
| Frequency Response | 55–25,000 Hz ±3dB |
| Recommended Amplifier Power | 20—200 watts per channel |
| Horizontal Dispersion | 160° |
| Vertical Dispersion | 30° |
| Sensitivity | 93 dB @ 2.83 volts/ meter |
| Impedance | 5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 2,300Hz |
| High Frequency Transducer | Two 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm |
| Low Frequency Transducer | 6.5" (16.5cm) paper cone with cast aluminum basket. Ported. |
| Components | Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection. |

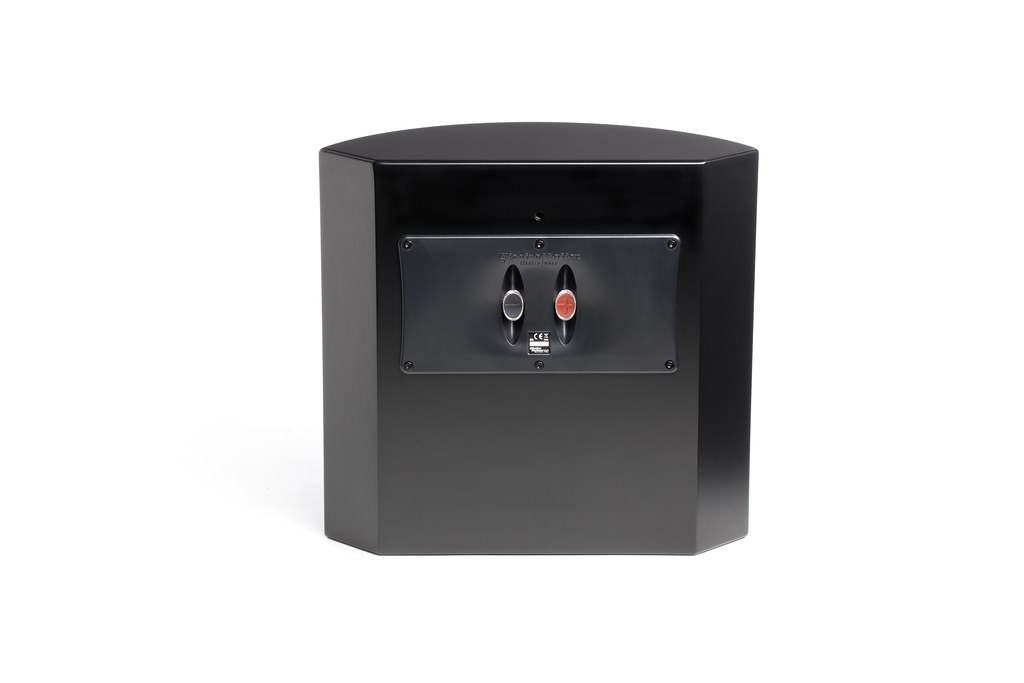

| Inputs | Push style with banana jacks |
| Weight | 16 lbs. (7.3 kg) |
| Dimensions | 14.9" x 14" x 6.8 " (37.9cm x 35.5cm x 17.2cm) |
