Denon 2-Channel 160W Integrated Amplifier with MM/MC Phono Stage in Silver - PMA3000NESPE3
Authorized Dealer
Price Match Guarantee
| Our Price |
$4,699.00 CAD / Each |
Or as low as $522.11/month over 9 months. Apply Now

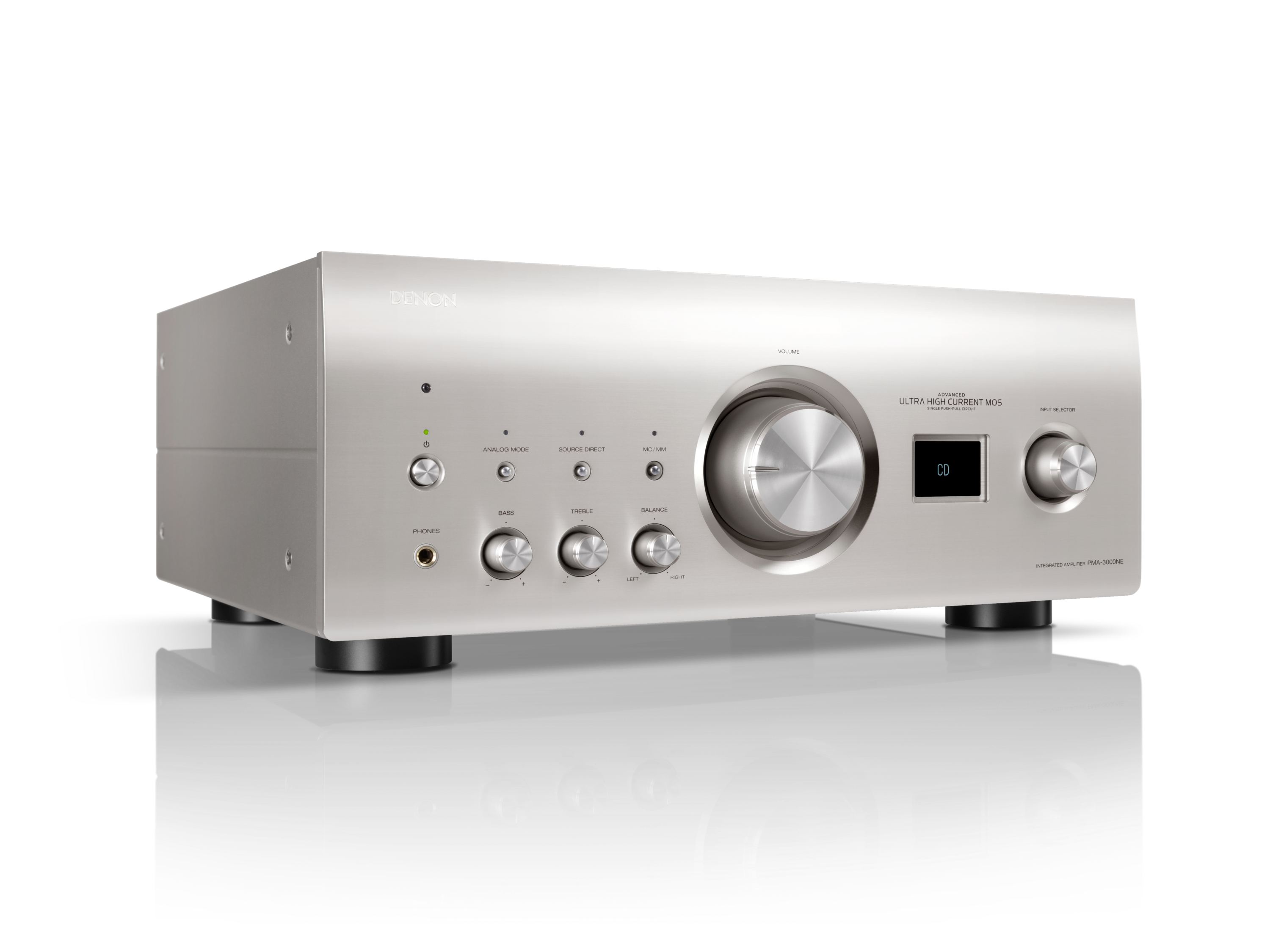

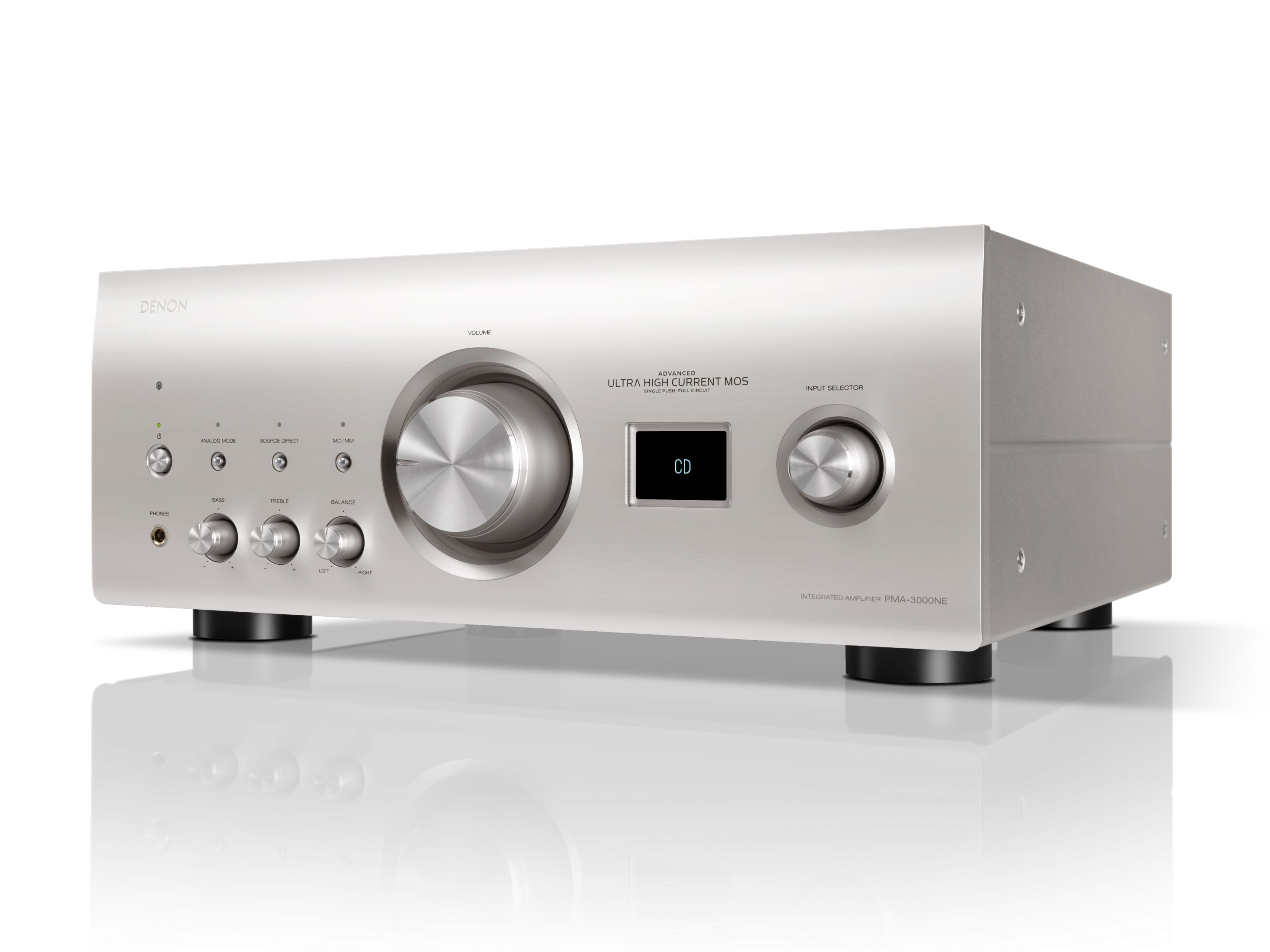

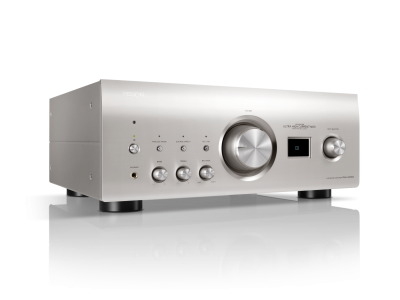

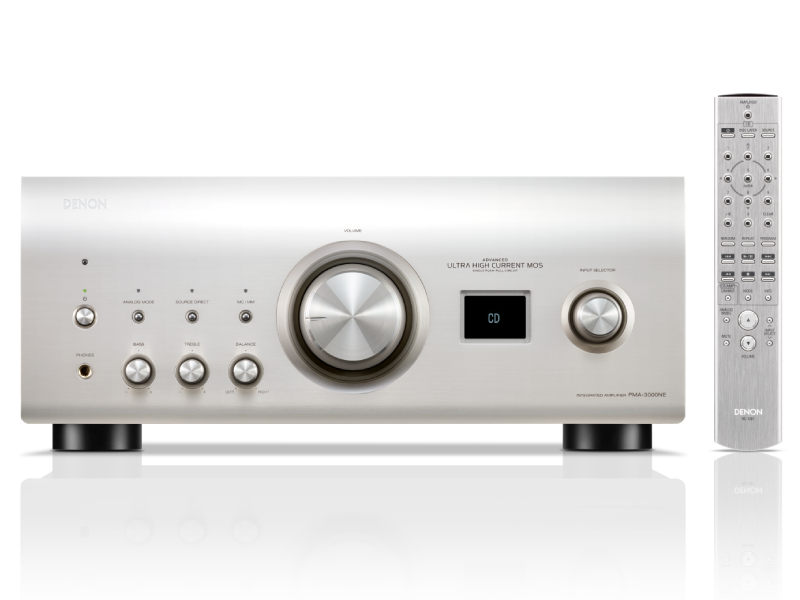

Denon 2-Channel 160W Integrated Amplifier with MM/MC Phono Stage in Silver - PMA3000NESPE3
PMA3000NESPE3
The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.
- 2 channels
- 160 watts per channel
- MM/MC phono stage
- Ultra AL32 Processing
- Optical, coaxial, and USB digital connections
- Pure Analog mode
Audio excellence, redefined
With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favorite music with clarity and precision.
Faithful to any sound source
Drives even the most demanding speakers
A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.
Seamlessly integrate high-resolution digital audio
Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
Unlock your vinyl collection’s full potential
The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
Fidelity, form, and function
Advanced amplifier design
The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its UHC-MOS single push-pull circuit and differential 2-stage amplifier drive demanding speakers with exceptional clarity and linearity.
Ultra AL32 Processing
Denon's Ultra AL32 Processing uses interpolation algorithms to produce highresolution output. Supporting input signals up to 384kHz/24-bit, it upsamples for smoother waveforms and improved sound reproduction.
High-performance MM/MC Phono Stage
The PMA-3000NE's phono stage supports both MM and MC cartridges for truest vinyl reproduction in any setup. A high-gain design and “simple and straight” circuitry minimize distortion for pure, detailed sound.
Digital audio inputs
The PMA-3000NE’s versatile digital connections, including optical, coaxial, and USB Type B, support up to 384kHz/32-bit and 11.2MHz DSD audio.
Pure Analog mode
Pure Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.

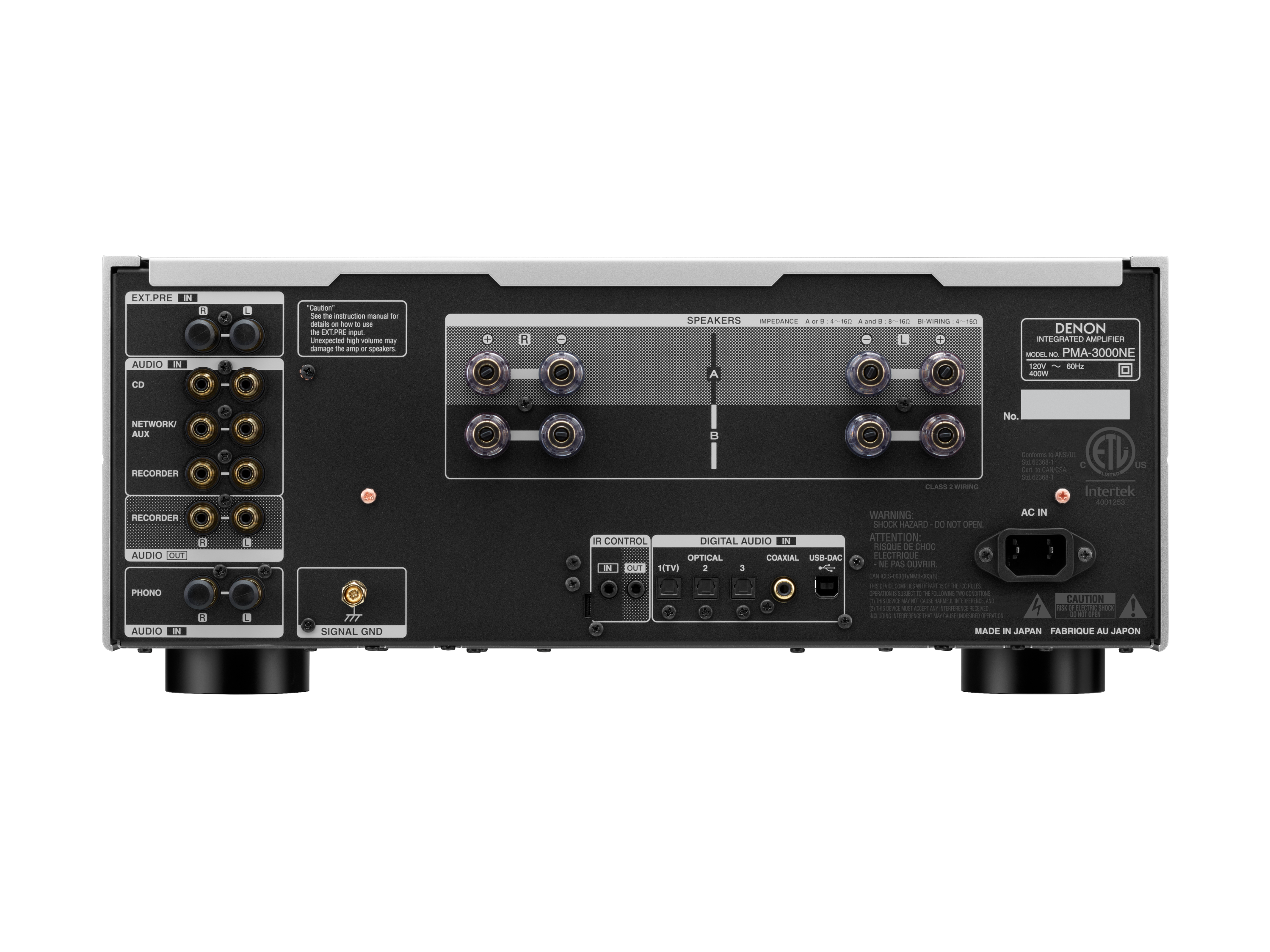

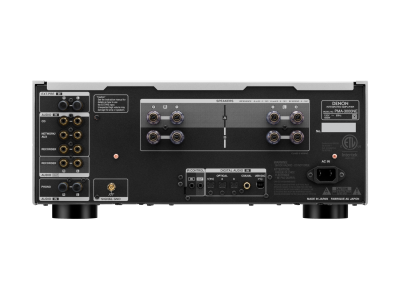

Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
| General | |
|---|---|
| Unit (W × H × D) | 434 × 182 × 443 mm |
| Net Weight | 24.6 kg / 54.2 lbs |
| Panel Cover | Silver, Black |
| Specifications | |
| Rated Output Power | 80W + 80W (8 ohm,20 Hz-20 kHz,THD 0.07%) 160W + 160W (4 ohm, 1 kHz, THD 0.7%) |
| Total Harmonic distortion | 0.01 % (Rated output: –3 dB),8 ohm/ohms, 1 kHz |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 μV / 100 ohm |
| Input Sensitivity:CD/LINE/RECORDER | 135 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.9V / 47 kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): 89 dB PHONO (MC): 74 dBCD: 107 dB |
| Power Consumption | 400W |
| Power Consumption at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Audio Features | |
| Power Amplifier Circuit | New UHC-MOSSingle Push Pull (7) |
| Preamplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| DAC Circuit | ES9018K2M × 4 |
| Digital Processing | Ultra AL32 Processing |
| DAC Master Clock Design | Yes |
| Asyncronous mode (for USB-B input) | Yes |
| Connectivity | |
| Phono Input | Yes (MM / MC)*default = MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (Gold Plated)(Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical input / output(Maximum Support) | 3 / 0 (192 kHz/24-bit) |
| Coaxial input / output(Maximum Support) | 1 / 0 (192 kHz/24-bit) |
| Speaker Terminal | AVR-A1H type Gold Plated w/Cover |
| Headphone Output | 1(Turns off the speaker automatically when headphone is inserted) |
| Remote Control | Yes |
| Remote Control Bus Terminal | Yes (mini) |
| Wi-Fi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| PCM Sample Rate / Resolution | ~384 kHz/32-bit |
| DSD Audio Streaming | ~11.2MHz |
