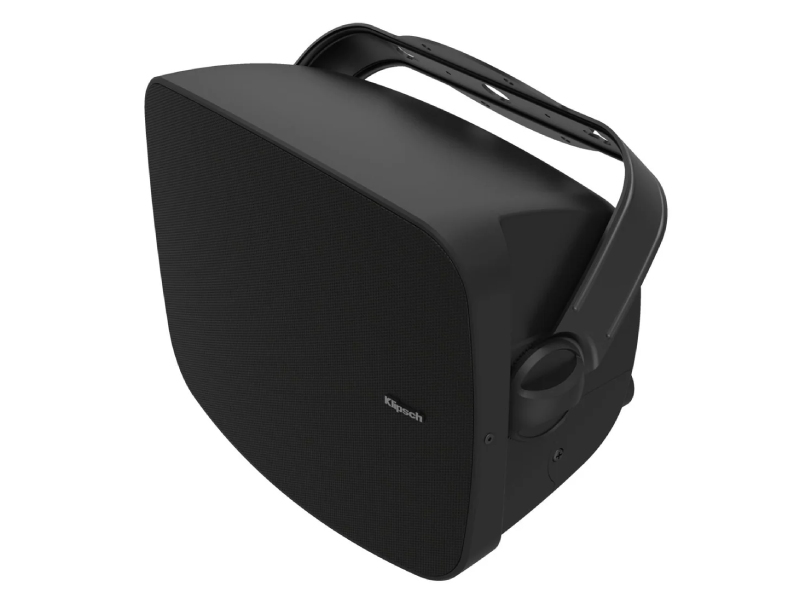

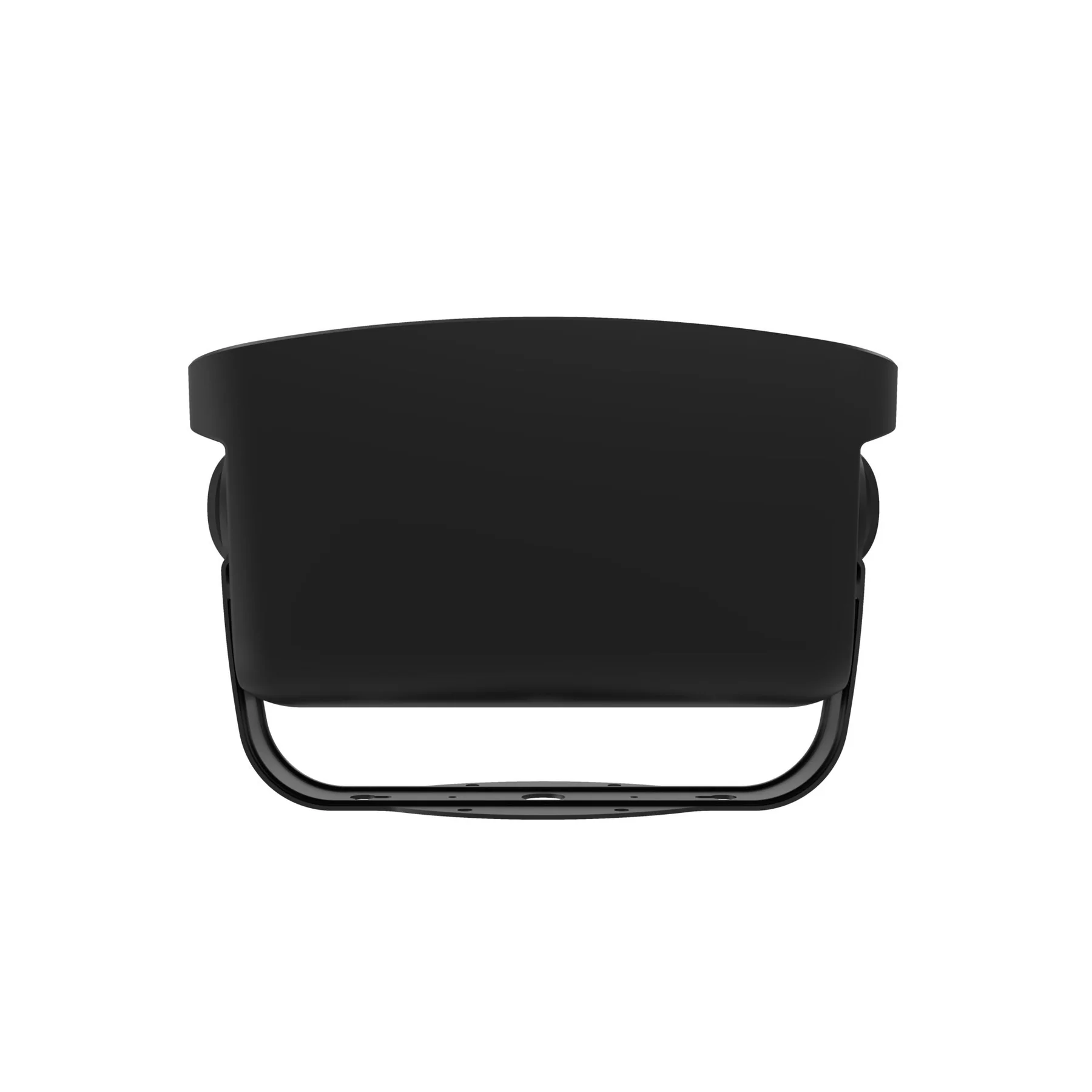

Klipsch 5.25" Indoor/Outdoor Professional Surface Mount Loudspeaker with Transformer (Single) in Black - PSM525TB

Klipsch 5.25" Indoor/Outdoor Professional Surface Mount Loudspeaker with Transformer (Single) in White - PSM525TW

Klipsch 5.25" Indoor/Outdoor Professional Surface Mount Loudspeaker with Transformer (Single) in Black - PSM525TB

Klipsch 5.25" Indoor/Outdoor Professional Surface Mount Loudspeaker with Transformer (Single) in White - PSM525TW

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Quote Request

Availability
Call for availability

Quote Request

Availability
Call for availability

Quote Request

Availability
Call for availability

More options

PSM525TB
Best Deal Promise

PSM525TW
Best Deal Promise

PSM525TB
Best Deal Promise

Description
Features

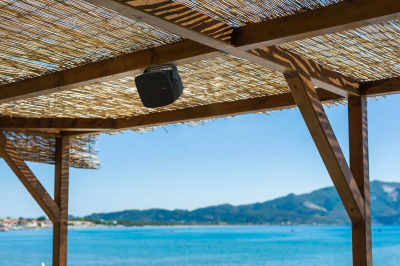

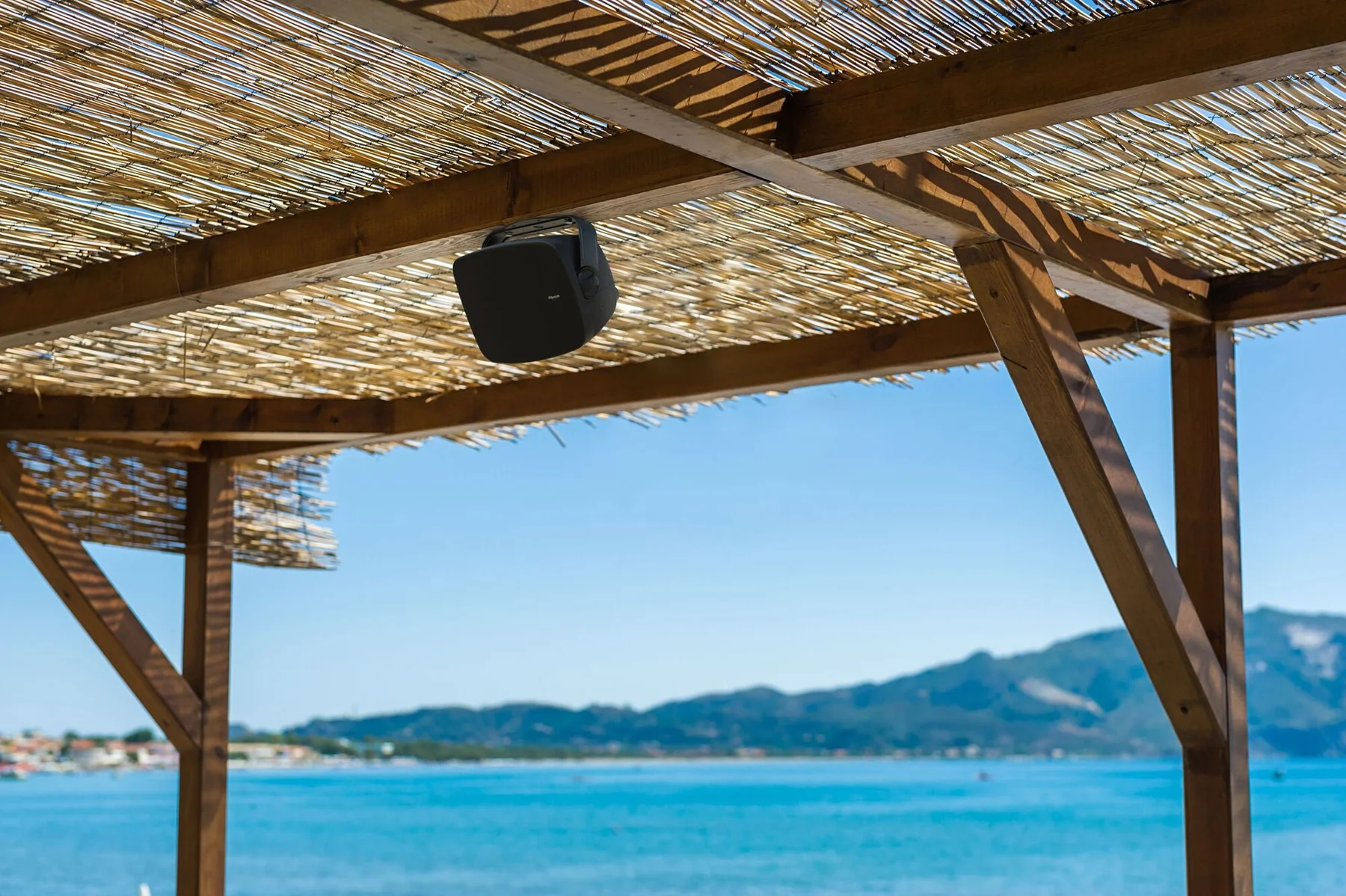

Introducing the Klipsch PSM-525T, a two-way, surface-mount speaker that brings the legendary Klipsch sound to your spaces. This speaker is designed to deliver clear, low-distortion sound in a rugged, weather-resistant design. With its compact form and exceptional acoustics, the PSM-525T is perfect for both indoor and outdoor installations.

More bass, less space with the all-new Tractrix® Hyperfold Port™
1” Titanium Compression Driver for effortless, high-clarity detail
IPX6 Rated for even the most challenging commercial environments
Multi-tap transformer for 70 or 100 volt installations, includes bypass position
Set screws on grille
Phoenix Connector for simplified installation

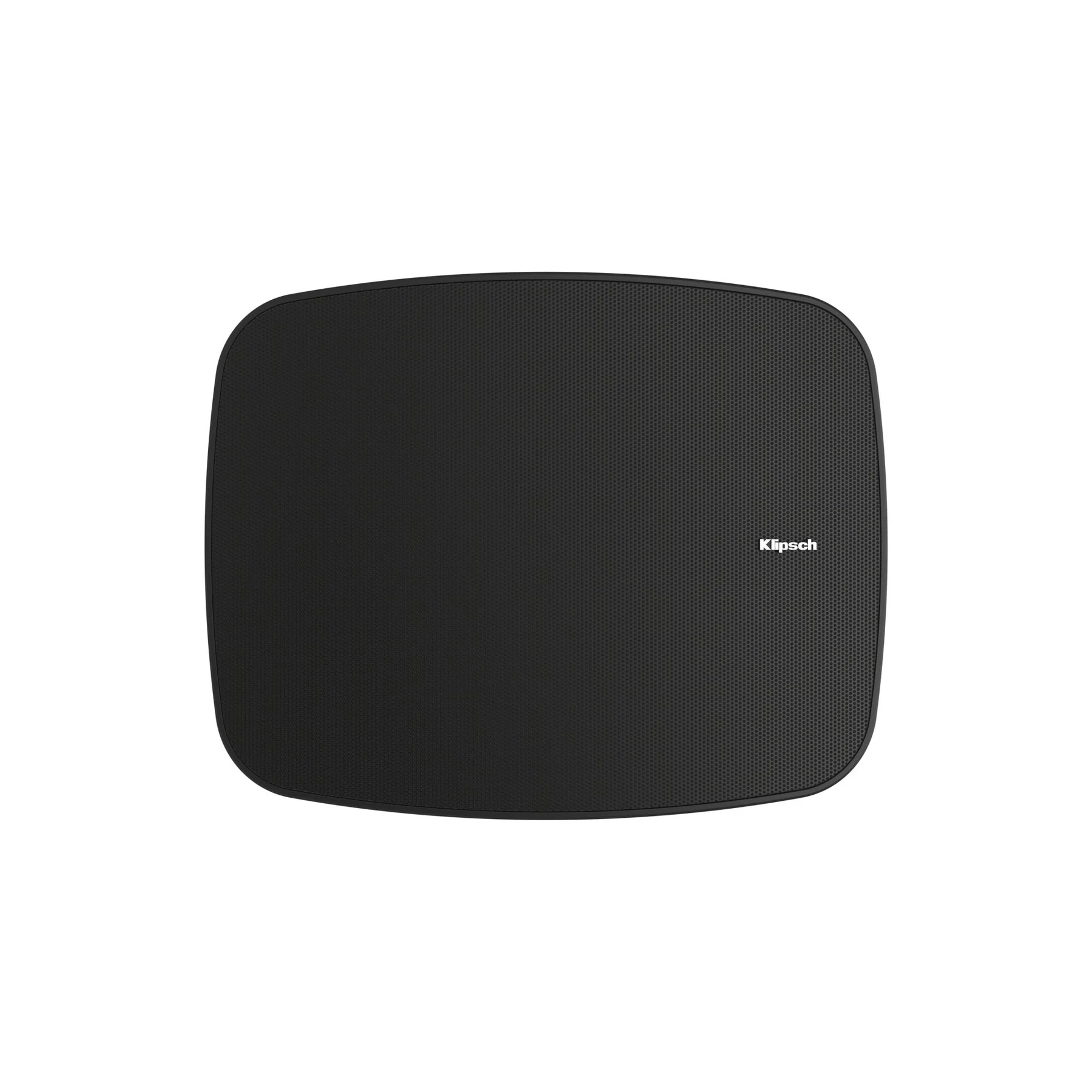

Paintable, rust-proof aluminum grille

Specifications
FREQUENCY RESPONSE	58HZ-20KHZ +/- 4DB, 48HZ -10DB
POWER HANDLING	65 WATTS (16.7V) 55HZ-10KHZ (260 WATTS PEAK)
CALC. MAX. CONT. OUTPUT	104DB
SENSITIVITY	89DB
COVERAGE	100° +/- 20° 1KHZ-20KHZ
DIRECTIVITYINDEX	7DB+/-1.5DB 1KHZ-20KHZ
NOMINALIMPEDANCE	8OHMS 4.3OHMS AT 175HZ MINIMUM
ACOUSTIC CROSSOVER	2KHZ
TRANSDUCERS	5.25” WOOFER ON A K-1200M HORN/TWEETER BRIDGE
ENCLOSURE MATERIAL	ALL WEATHER ABS PLASTIC, PAINTABLE
IP RATING	IPX6
ENCLOSURE TUNING	VENTED VIA 3 FOLDED TRACTRIX PORTS
NPUT CONNECTORS	4 PIN EURO BLOCK
TRANSFORMER TAPS	70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 7.5W, 3.8W BYPASS POSITION: 8 OHMS NOMINA
DIMENSIONS [WITH BRACKET]	12.13”(309MM) X 9.5”(242MM) X 6.5”(166MM) [8.38”(213MM)]
WEIGHT	7.75 LBS (3.52KG)
