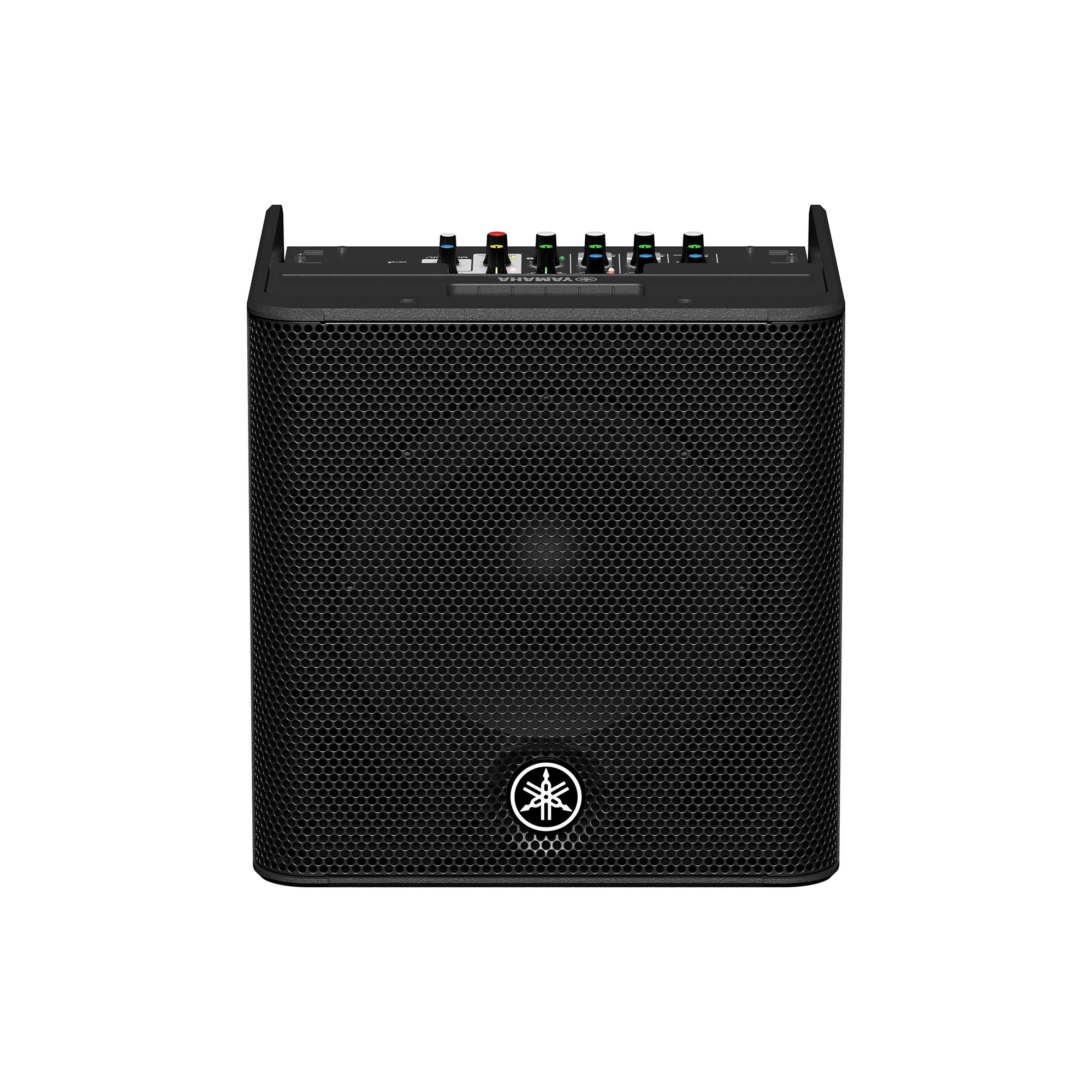

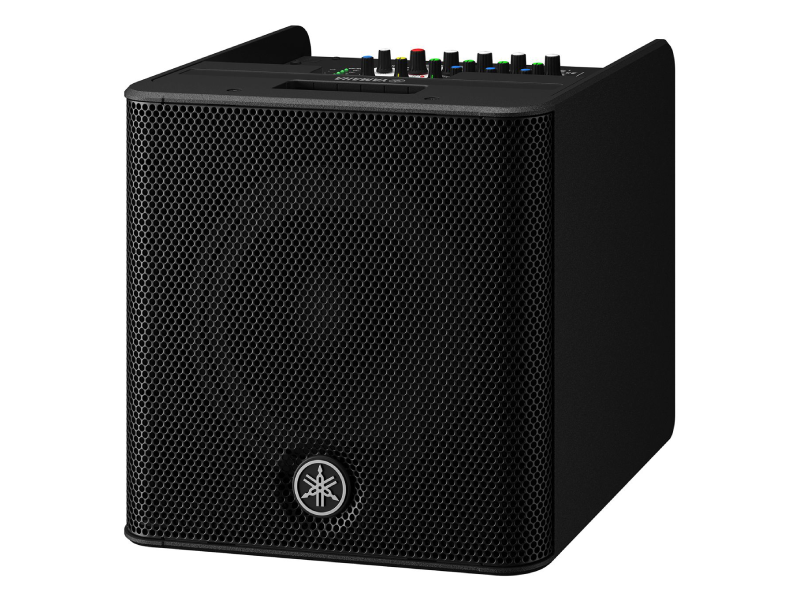

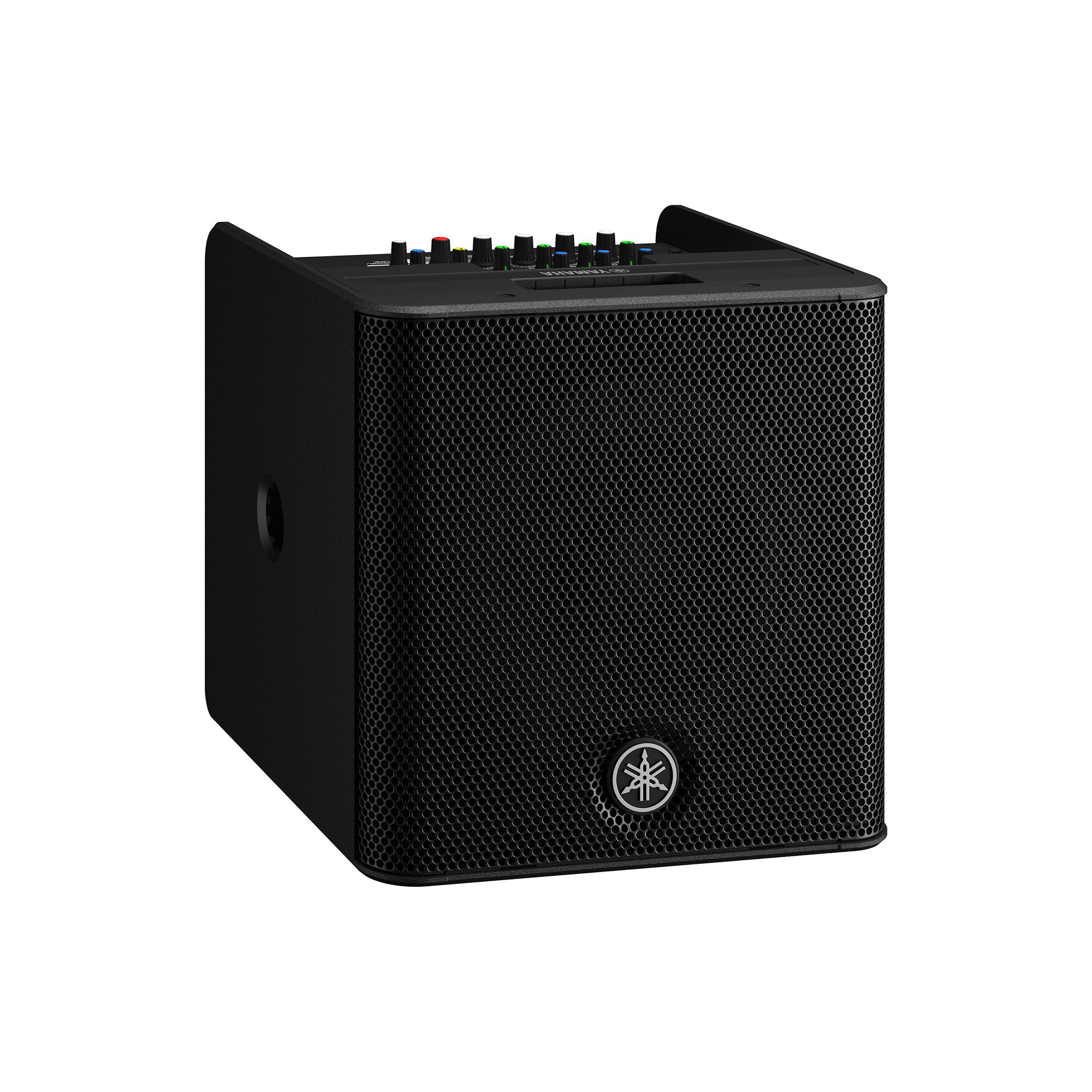

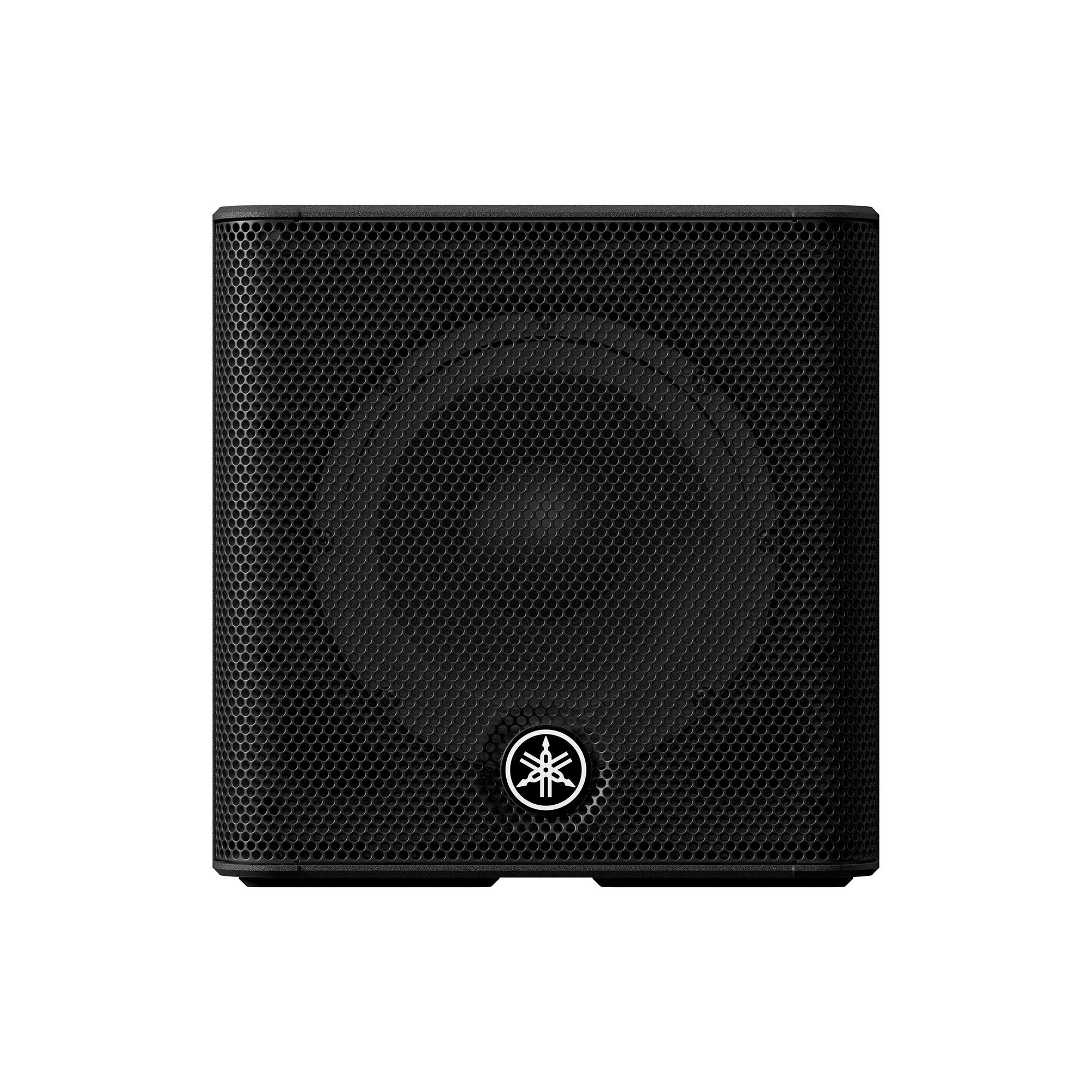

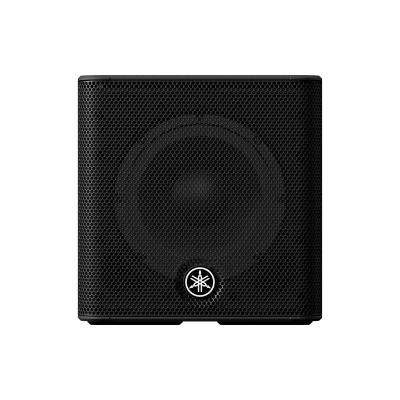

Yamaha Portable PA Speaker with Battery - StagePas 200BTR

MOVE THE AIR, MOVE YOUR AUDIENCE

With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200 is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of crucial live sound features, and superb overall performance, your audience will be stunned by your sound, and likely puzzled by your diminutive setup. The STAGEPAS 200 comes in two models— one with a high-capacity lithium-ion battery, the other compatible with optional batteries, giving you the flexibility to inspire performers and audiences alike in virtually any environment you choose, from street performances with 1-3 performers, to events, parties, and speeches.

Sound that astounds

Featuring a high-quality coaxial transducer design, the STAGEPAS 200 is capable of delivering best-in-class sound pressure, precise phase response, and a very natural dispersion of high frequencies. Adopting some of the same expertise used in our high-end Professional Audio gear, this mighty yet minimalistic powerhouse will stun your audience with the full dynamic range and response of your performance.

Advanced technology condensed into a compact unit

Coaxial compression drivers utilize a common motor structure sharing a single magnet, reducing weight and bringing LF and HF closer together to provide a more ideal point sound source. Since sharing a magnet reduces magnetic flux, lowering the sound pressure, these drivers use voice coils made of a light aluminum material called "CCAW" wound in a square shape referred to as "Edgewound" to increase magnetic flux and ensure sufficient sound pressure, and also feature a device called a "demodulation ring" that suppresses magnetic flux disturbance to maintain a high level of sound quality. Additionally, they are equipped with an air venting structure in the basket to reduce LF wavering at high volumes, a polyimide diaphragm to balance HF durability with smooth high-frequency characteristics, and a short aluminum horn for better directional control, durability, and heat dissipation. These compact units house advanced, state-of-the-art technologies.

Mix it up

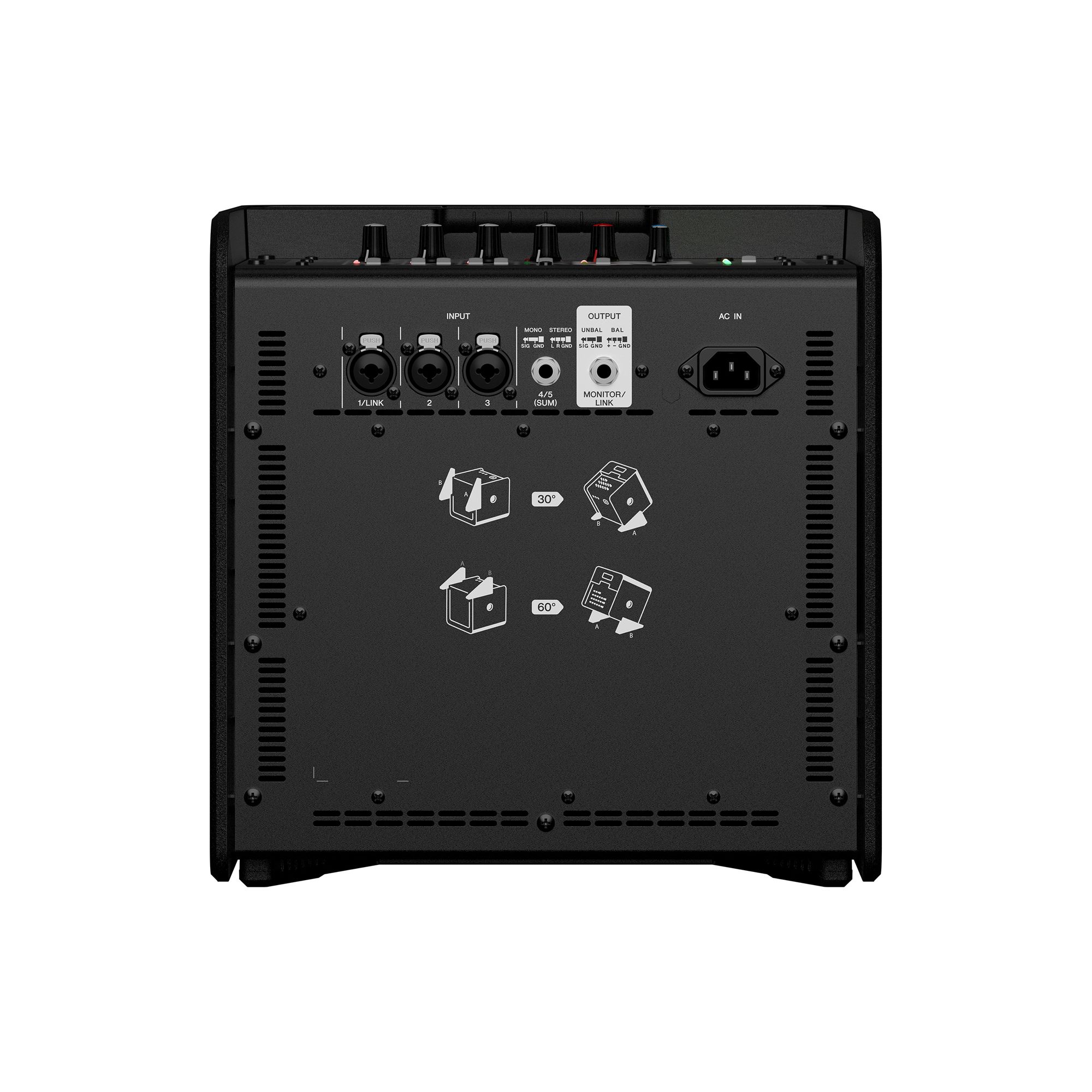

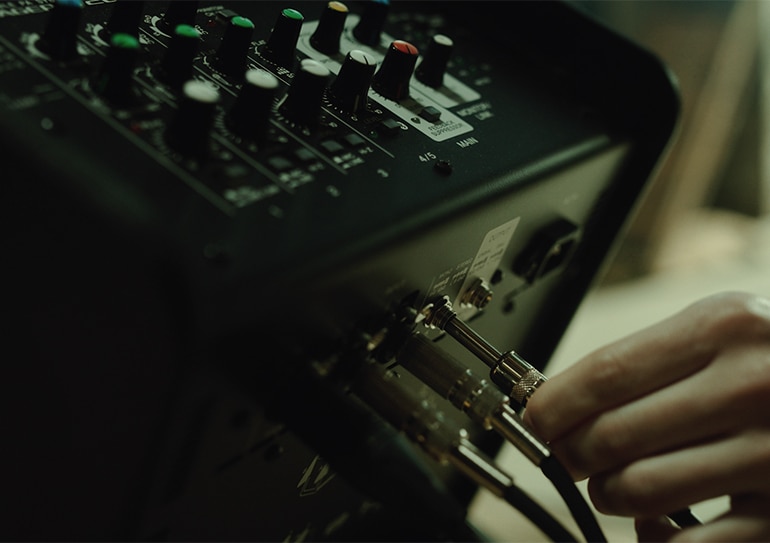

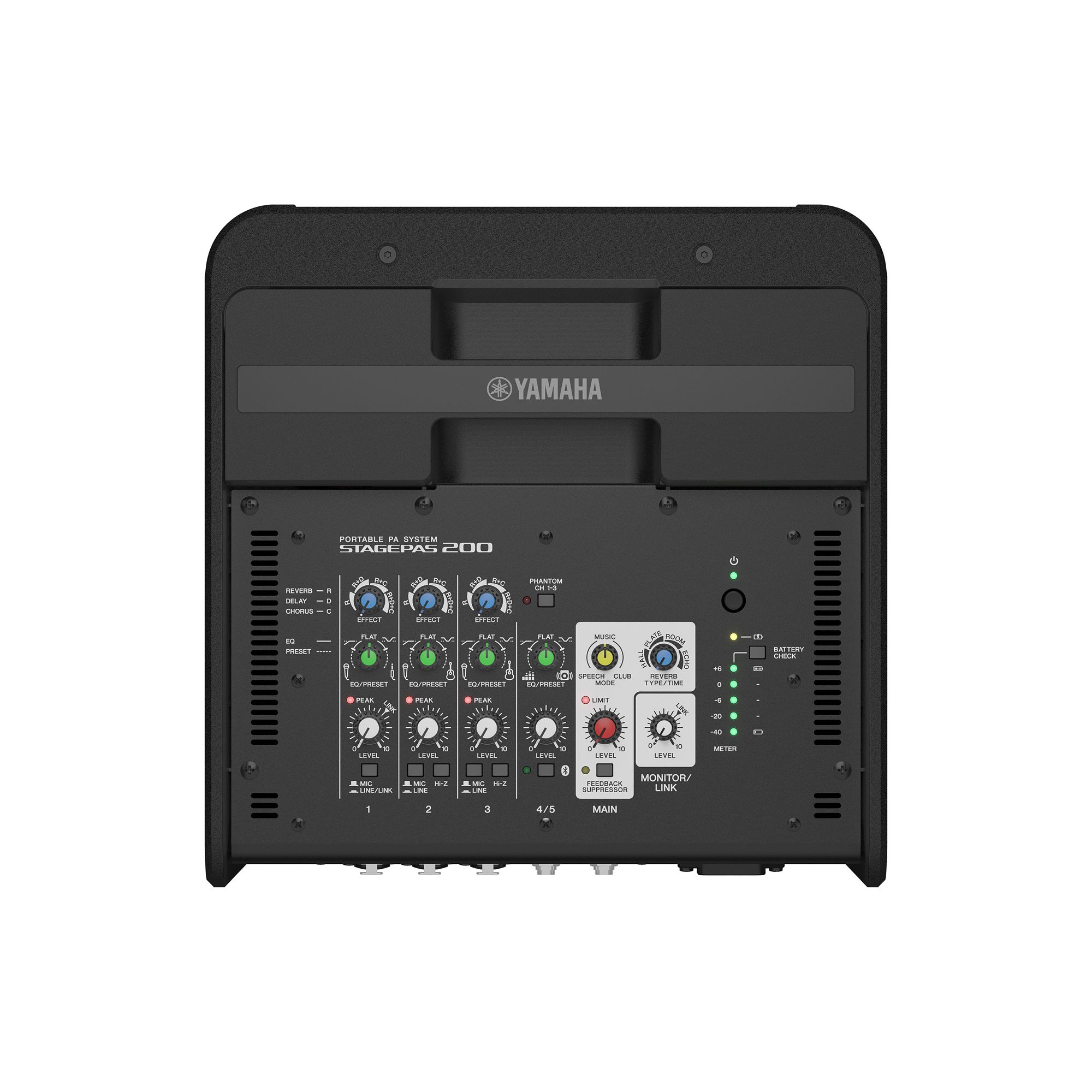

The STAGEPAS 200 puts a strong emphasis on its “all-in-one” designation offering all the connectivity, performance functions, and mixing capability you would ever need for small-scale duo or trio performances— all packed into a compact 300 mm cube-style cabinet. Equipped with a digital mixer that can be controlled remotely for up to 5 channels, 3 mic preamps, and a comprehensive range of practical functions you’ll be thankful to have at your disposal, the STAGEPAS 200 is without peer in the compact all-in-one PA market.

Dial in and vibe out

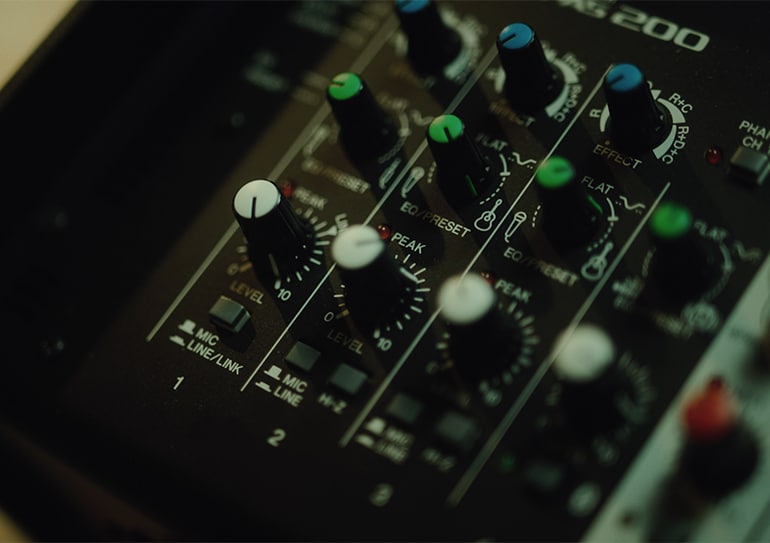

The simple, intuitive operation of the STAGEPAS 200 makes dialing in your ideal sound a painless— even enjoyable process. Each channel is equipped with a 1-knob EQ/preset and SPX digital effects, along with the master output MODE compressor, enabling fast yet powerful adjustments to your sound, while channels 2-3 feature microphone simulators included in 1-knob EQ/preset can also add instantaneous authenticity to acoustic guitars.

Smooth operator

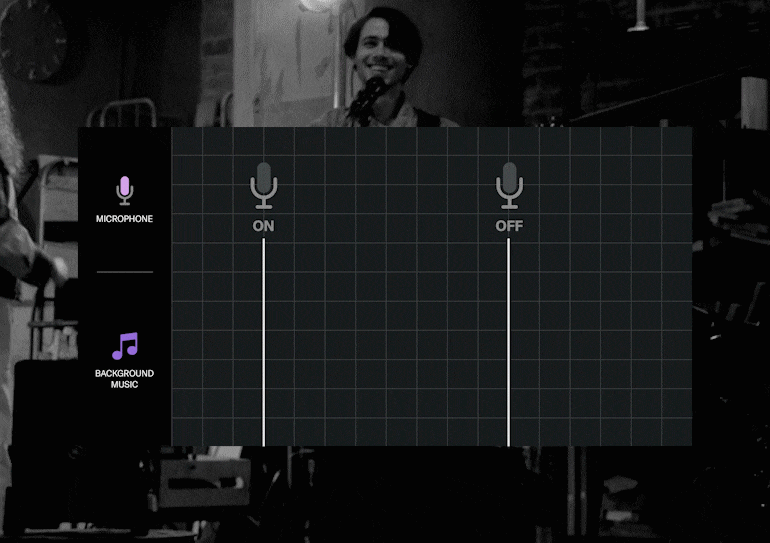

The STAGEPAS 200 is equipped with adaptive functions that will help alleviate anxiety about your sound and let you focus on performing your absolute best.

Convenient, creative remote control

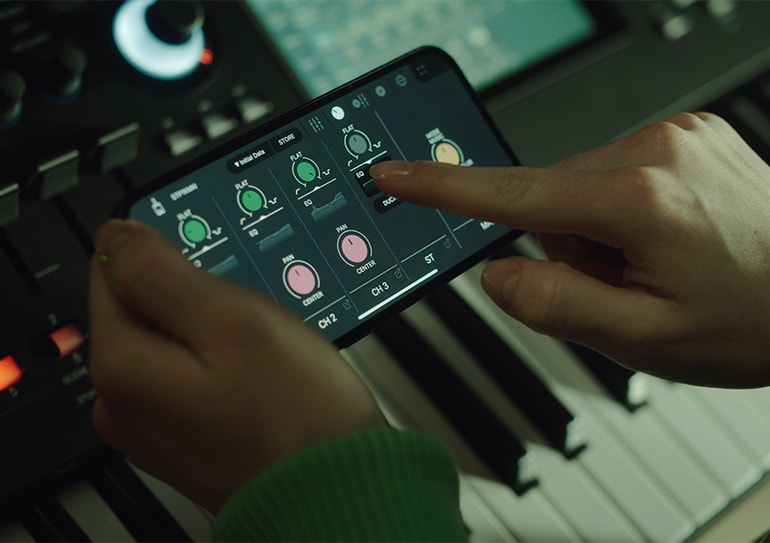

The STAGEPAS Controller app, for both iOS and Android devices, gives you real-time remote control of both volume and EQ. Additionally, the app allows for more precise adjustment detail than the main unit’s interface such as EQ, Reverb, Compressor, Microphone simulators, Ducker, etc. to maximize the capabilities of your STAGEPAS 200. You can save these settings in “scenes” stored on the app to be recalled any time for consistent sound and reduced setup time.

10 Hours of non-stop performance

Compatible with a large-capacity lithium-ion battery allowing up to 10 hours of continuous operation, the STAGEPAS 200 reliably delivers excellent performance even in remote locations where no power source is available. The BTR-STP200 battery ships with the STAGEPAS 200BTR. It is also available separately.

Bluetooth® Connectivity

Bluetooth functionality enables wireless connection for easy audio playback via smartphones and tablets. It also allows use of the dedicated STAGEPAS Controller app for mixer control and adjustment.

The right direction

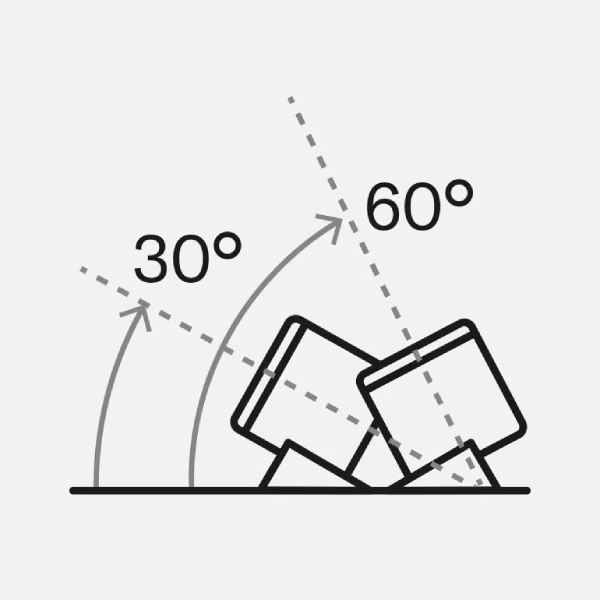

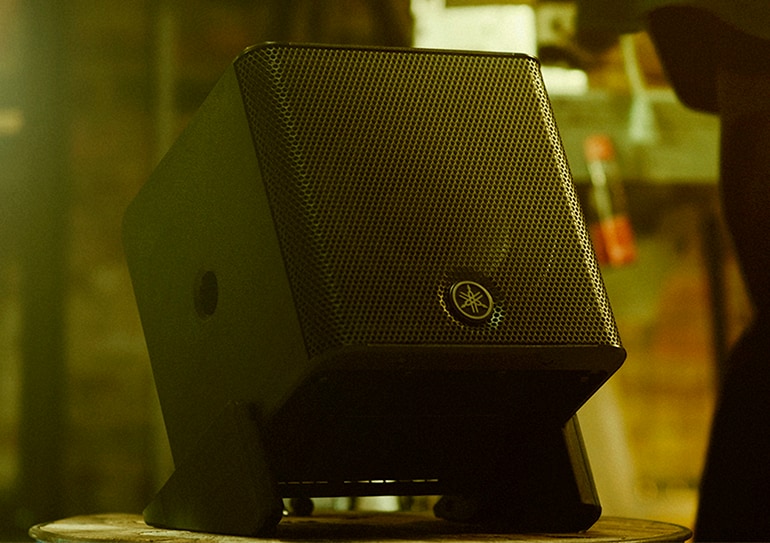

The rubber stand on the base of the cabinet lets you incline the unit at a 30 or 60 degrees tilt angle to adapt to your chosen performance environment or application. This allows placement of the STAGEPAS 200 facing the audience as a fill speaker, or towards the performers when using as a floor monitor.

Mounting possibilities

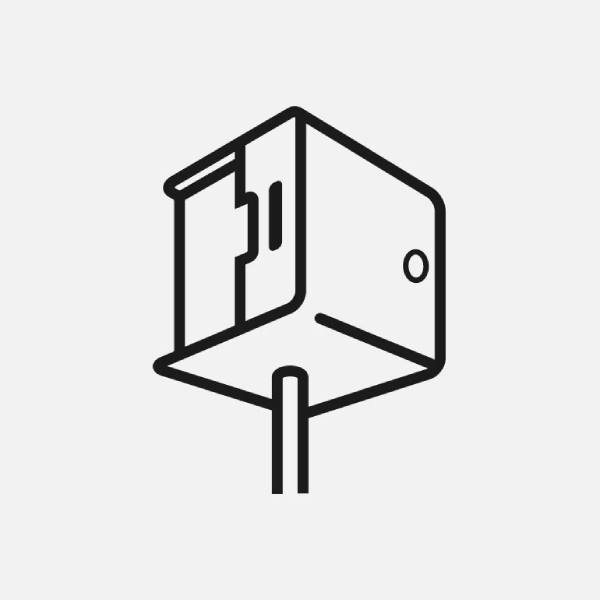

The bottom of the cabinet houses a 35 mm diameter pole mounting socket, allowing the STAGEPAS 200 to be mounted on a speaker stand or used in an installation with a subwoofer using a distance rod.

Whenever. Wherever.

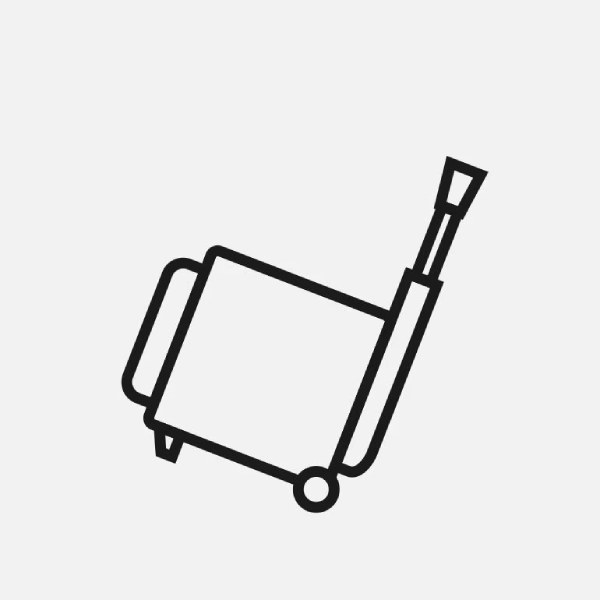

The optional dedicated CASE-STP200 carrying case is equipped with casters and large-capacity pockets for convenient transport to any location safely and easily.
